Correct Belt Lacing and Pin Installation

IMPORTANT: When belts are assembled, edges must be aligned to prevent belt damage.

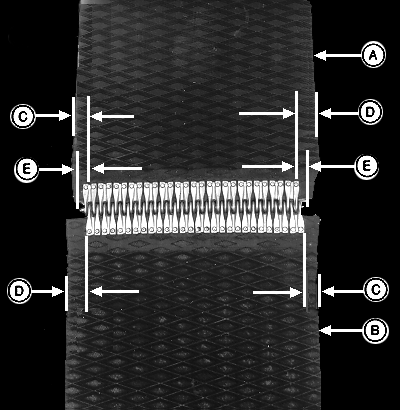

E40644
E40644-UN-15JUL96

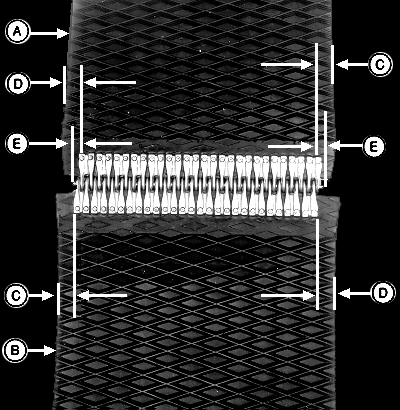

E40643
E40643-UN-15JUL96

A - Belt Edge

B - Belt Edge

C - Dimension, 11 mm (0.433 in.)

D - Dimension, 14 mm (0.551 in.)

E - Dimension, 3 mm (0.118 in.)

The laces use the same number of segments on each end of belt. This requires the laces to be offset slightly, as illustrated.

Belts illustrated are laced and pinned correctly with belt edges aligned.

The belt expands when laces are installed. Check alignment of belt edges approximately 51 mm (2 in.) back from end of belt. Belt edges (A and B) must be aligned when belt is joined.
