Belts Not Eligible for Warranty Replacement

The following illustrations are belts damaged by accumulation of crop or foreign objects on top of compressor rack and between belts in the starter roll area. A small slug of the buildup will pass between the lower drive roll and the belt, which forces the belt into the starter roll. The bars of the starter roll remove chunks of rubber from the belt and tear the belt fabric.

•

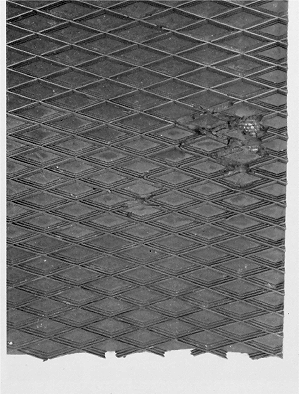

  E27608-UN-12SEP88

  Chunks of rubber missing from surface of belt.

---

• NOTE: This example is not ply separation.

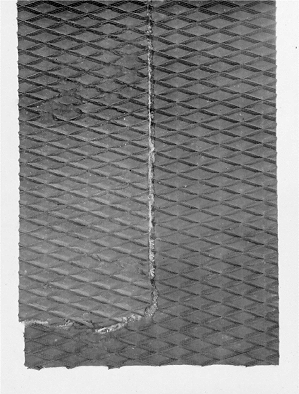

  E27609-UN-12SEP88

  Belts with holes and tears.

---

•
  E27610-UN-12SEP88

  Belts that are cut or torn in two.

---

•
  E27611-UN-12SEP88

  Back side of belt showing damage caused by foreign objects.

---

•
  E27614-UN-12SEP88

  Belt fabric cut when cutting down toward surface of the belt to remove diamond pattern.

---

•
  E27615-UN-12SEP88

  Too much of diamond pattern removed for belt lacing.

---

•

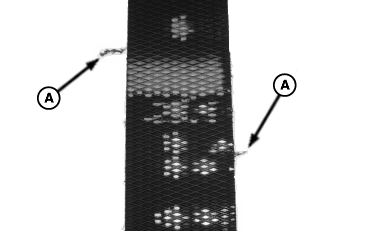

  E54524-UN-03MAY06

  Small frays (A) on a belt are normal.
