Check and Adjust Net Wrap Feed Roll Brake Spring

1.

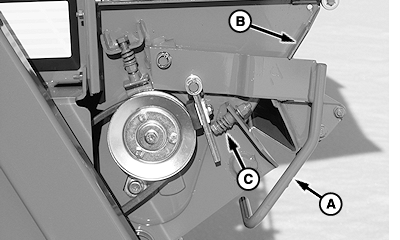

   E56781-UN-10FEB09

   Left-hand Side Shown

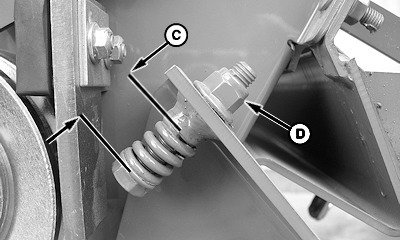

   E57644-UN-14JUL09

   A - Brake Handle

   B - Tab

   C - Spring Length Over Coils

   D - Nut

   Open net wrap cover.

---




2. Disengage brake by pulling out and up on handle (A).

3. Check that spring length (C) is within specifications. Adjust by tightening or loosening nut (D).

   Item	Measurement	Specification
   Spring	Length Over Coils	22 ± 0.5 mm (0.87 ± 0.02 in.)

4. Engage brake by pulling out and down on handle (A) and positioning handle under tab (B).

5. Close net wrap cover.
