Install Net Wrap Actuator

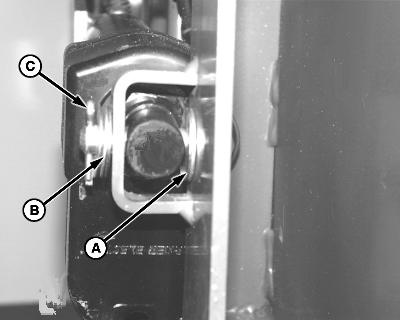

  1. E48087
    E48087-UN-12JUN00

    A - Washer, 13 x 25 x 3 mm

    B - Washers, 13 x 25 x 3 mm (2 used)

    C - Cotter Pin, 4 x 25 mm

    Install base end of actuator (motor down) on right-hand side of gate with one crowned pin. Insert pin through inside hole in actuator support, through one 13 x 25 x 3 mm washer (A), actuator, and second hole in support.


  2. Install two 13 x 25 x 3 mm washers (B) and 4 x 25 mm cotter pin (C).

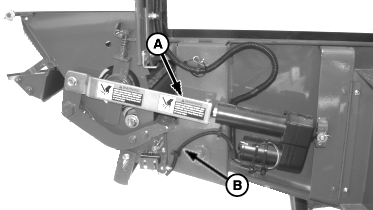

  3. E54541
    E54541-UN-01MAY06

    A - Pin

    B - Wire Harness

    Install link (A) over rod end of actuator as shown. Insert one crowned pin from top through link and actuator rod.


  4. Install 13 x 25 x 3 mm washer and 4 x 25 mm cotter pin.

  5. Connect wire harness (B) to actuator. Fasten connector and harness to actuator motor with a tie strap.

  6. Shut actuator door.

  7. IMPORTANT: After installing actuator, turn monitor-controller ON. Press WRAP key to return counterknife arms to home position. Turn monitor-controller off to cancel STOP alarm. If this procedure is not followed, net will be fed continuously during the next bale.

    Connect monitor-controller power plug to power source. Turn tractor key to ON position. Do not start tractor engine. Turn monitor-controller ON.

  8. E55144
    E55144-UN-10MAY07

    A - Belt

    B - Idler Pulley

    With channel 018 on monitor, cycle actuator using extend or retract key so actuator moves just half way up or down, so belt will be loose.


  9. Temporarily move V-belt from top of idler pulley to underside of idler pulley.

  10. Cycle actuator several times using WRAP key. Observe actuator to make sure that it fully extends and fully retracts. If not, check for binding at mounting pins and washers, clean electrical connections, and check for low tractor voltage. There must be a minimum of 9.7 V with tractor engine running and the net actuator installed.

  11. Place monitor on channel 018. Use extend or retract key and return actuator to approximately half way up or down.

  12. Move V-belt to top of idler pulley.

  13. Using extend or retract key, retract actuator so idler pulley will not have pressure on the belt.

  14. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

  15. Check and adjust net wrap V-belt idler tension. (See CHECK AND ADJUST NET WRAP V-BELT IDLER TENSION in this section.)

  16. Check and adjust feed roll brake (See CHECK AND ADJUST FEED ROLL BRAKE in this section.)

PP98408,0000FB1-19-20130207
