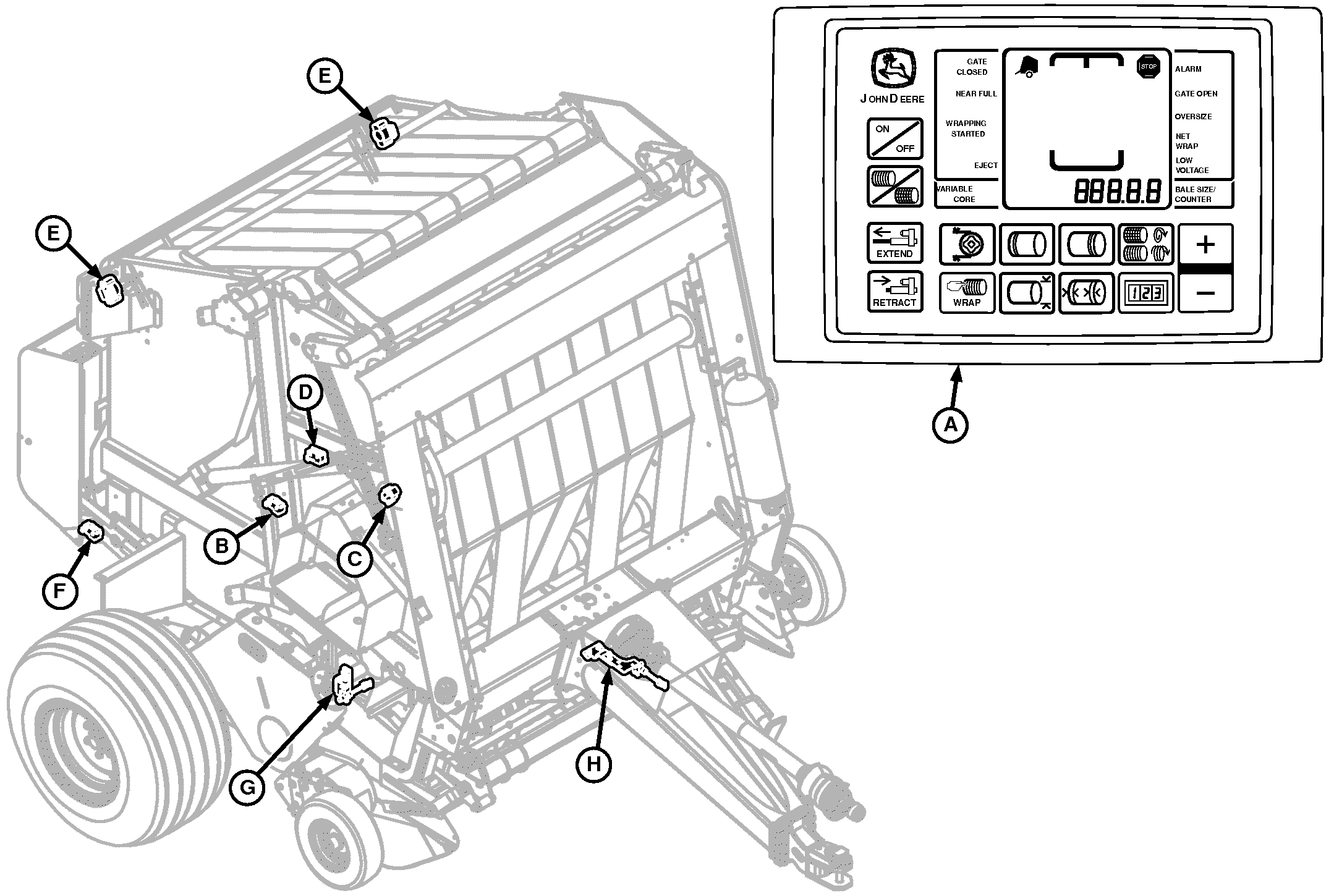

BaleTrak™ Pro System Component Locations

IMPORTANT: Not used on a 459 and 559 Baler with a Regular pickup.

E69502-UN-22MAR13

A - Monitor-Controller (located on tractor)

B - Gate Latch Switch (left-hand switch not used)

C - Bale Diameter Sensor

D - Oversize Bale Switch

E - Bale Shape Sensors

F - Net Wrap Switch (if equipped)

G - Pickup Slip Clutch Alert Sensor

H - PTO Slip Clutch Alert Sensor
