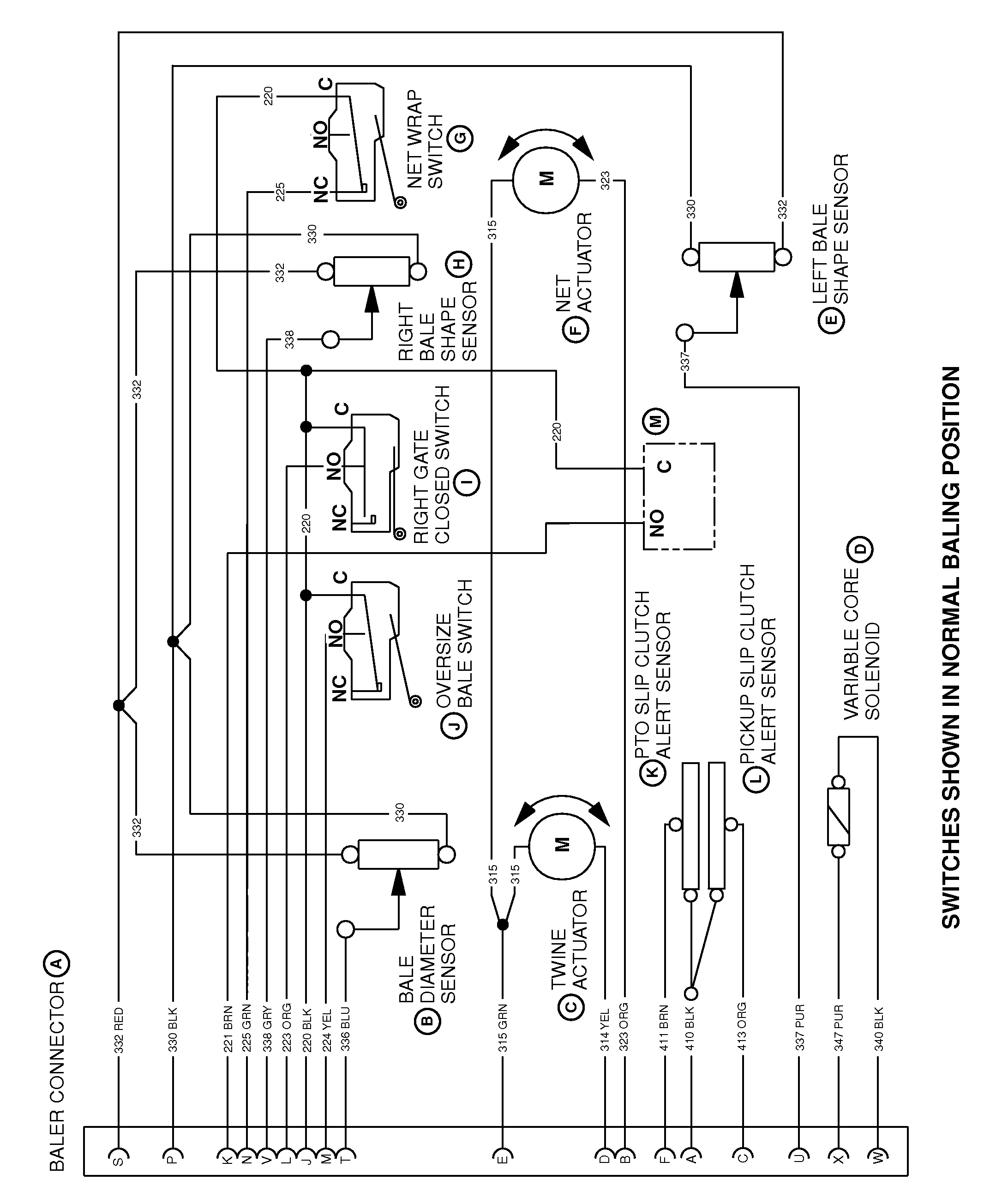

Wire Diagram—BaleTrak™ Pro Monitor-Controller Control System

E57241-UN-29JUN09

A - Baler Connector

B - Bale Diameter Sensor

C - Twine Actuator

D - Variable Core Solenoid

E - Left Bale Shape Sensor

F - Net Actuator

G - Net Wrap Switch

H - Right Bale Shape Sensor

I - Right Gate Closed Switch

J - Oversize Bale Switch

K - PTO Slip Clutch Alert Sensor (Not Used on 459 and 559 with Regular Pickup)

L - Pickup Slip Clutch Alert Sensor (Not Used on 459 and 559 with Regular Pickup)

M - Left-hand Gate Closed (Not Used)
