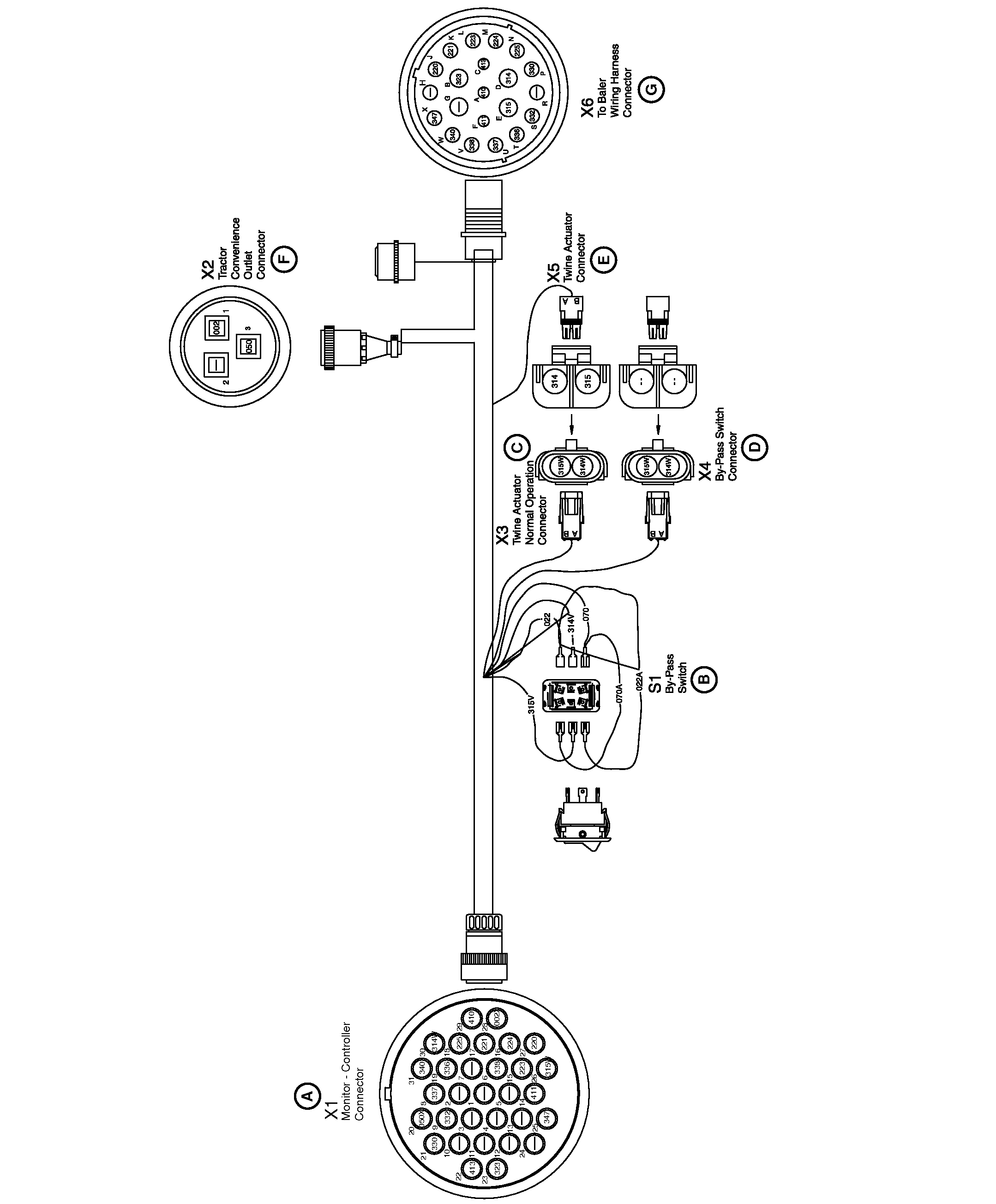

Wire Harness Diagram—BaleTrak™ Pro Monitor-Controller

E57278-UN-02JUN09

A - Monitor-Controller Connector (X1)

B - By-Pass Switch (S1)

C - Twine Actuator Normal Operation Connector (X3)

D - By-Pass Switch Connector (X4)

E - Twine Actuator Connector (X5)

F - Tractor Convenience Outlet Connector (X2)

G - To Baler Wire Harness Connector (X6)

X1 BaleTrak™ Monitor-Controller Connector
Terminal	Circuit	Function	Wire Color
1		Open
2		Open
3		Open
4		Open
5		Open
6	338	Right Bale Shape Sensor	Gray
7		Open
8	337	Left Bale Shape Sensor	Purple
9	332	Bale Shape Sensor Power	Red
10		Open
11		Open
12		Open
13		Open
14	411	PTO Speed	Brown
15	223	Right Gate Closed Switch	Orange
16	224	Oversize Switch	Yellow
17	221	Left Gate Latch Switch	Brown
18	225	Net Switch	Green
19	336	Bale Size Sensor	Blue
20	050X	Ground	Black
21	330	Bale Shape Sensor Ground	Black
22	413	Pickup Speed	Orange
23	323	Net Actuator	Orange
24		Open
25	347	Variable Core Valve	Purple
26	315W	Net and Twine Actuator	Green
27	220	Switch Ground	Black
28	002X	Power	Red
29	410	Speed Sensor Ground	Black
30	314W	Twine Actuator	Yellow
31	340	Variable Core Valve Ground	Black

X2 Tractor Convenience Outlet Connector
Terminal	Circuit	Function	Wire Color
1	002	Power	Red
2		Open
3	050	Ground	Black

X3 Twine Actuator Normal Operation Connector
Terminal	Circuit	Function	Wire Color
A	314W	Twine Actuator	Yellow
B	315W	Twine or Net Actuator	Green

X4 Bypass Switch Connector
Terminal	Circuit	Function	Wire Color
A	314V	Twine Actuator	Yellow
B	315V	Twine or Net Actuator	Green

X5 Twine Actuator Connector
Terminal	Circuit	Function	Wire Color
A	314	Twine Actuator	Yellow
B	315	Twine or Net Actuator	Green

X6 Monitor Harness-to-Baler Harness Connector
Terminal	Circuit	Function	Wire Color
A	410	Speed Sensor Ground	Black
B	323	Net Actuator	Orange
C	413	Pickup Speed1	Orange
D	314	Twine Actuator	Yellow
E	315	Twine or Net Actuator	Green
F	411	PTO Speed1	Brown
G		Open
H		Open
J	220	Ground	Black
K	221	Left Gate Closed Switch	Brown
L	223	Right Gate Closed Switch	Orange
M	224	Oversize Bale Switch	Yellow
N	225	Net Switch	Green
P	330	Ground	Black
R		Open
S	332	Bale Shape Sensor	Red
T	336	Bale Diameter Sensor	Blue
U	337	Left Bale Shape Sensor	Purple
V	338	Right Bale Shape Sensor	Gray
W	340	Ground	Black
X	347	Variable Core	Purple

S1 Bypass Switch Connector
Terminal	Circuit	Function	Wire Color
—	315V	Twine or Net Actuator	Green
—	070A	Ground	Black
—	022A	Power	Red
—	070	Ground	Black
—	314V	Twine Actuator	Yellow
—	022	Ground	Black
