Replace Bale Diameter Sensor

  1. Turn monitor-controller selector OFF. Turn tractor key to OFF position. Remove key.

  2. NOTE: Sensor is located on right-hand side of tension arm.

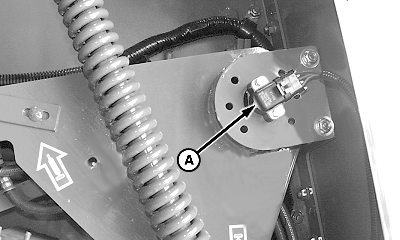

    E48456
    E48456-UN-20JUL00

    A - Wire Connector

    Disconnect wire connector (A).

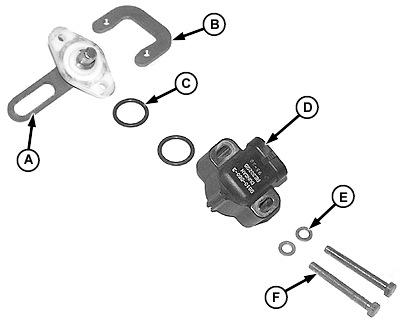

  3. E48043
    E48043-UN-22MAY00

    A - Arm

    B - Mounting Strap

    C - O-ring (2 used)

    D - Sensor

    E - Washer (2 used)

    F - Mounting Screw (2 used)

    Remove parts (A—F). Replace sensor (D).

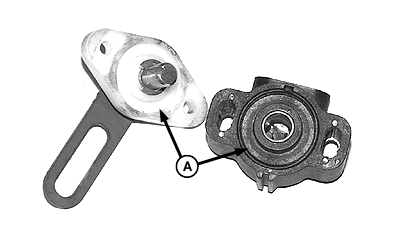

  4. E48044
    E48044-UN-22MAY00

    A - Grooves

    Install new sensor in reverse order of removal using the following procedure:

    • Make sure that O-rings are inserted in grooves (A).
    • Adjust sensor. (See REPLACE and ADJUST BALE DIAMETER SENSOR MOUNTING BRACKET and ADJUST BALE DIAMETER SENSOR [CHANNEL 005] in this section.)


PP98408,0000FBC-19-20130207
