Replace Bale Shape Sensor

1. Engage gate lock and raise tension arm.

2. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

3.
   E47621-UN-07JAN00

   Right-Hand Side Shown

   A - Shield

   B - Rolling Thread Cap Screw

   To replace sensor remove rolling thread cap screw (B). Rotate shield (A) away from baler.

---




4.
   E62314-UN-03APR12

   A - Wire Connector

   Disconnect wire connector (A).

---




5.

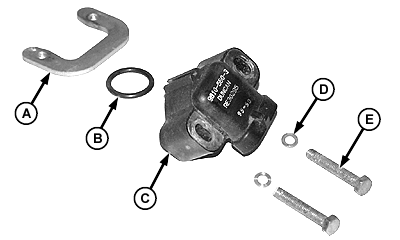

   E48084-UN-06JUN00

   A - Mounting Strap

   B - O-ring

   C - Sensor

   D - Washer (2 used)

   E - Mounting Screw (2 used)

   Remove parts (A—E).

---




6.

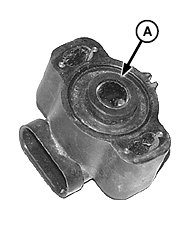

   E48085-UN-06JUN00

   A - Groove

   Install new sensor in reverse order of removal using the following procedure:
   • Make sure that O-ring is inserted in groove (A).
   • Adjust sensor. (See ADJUST BALE SHAPE SENSOR [CHANNEL 007 and 009] in this section.)



---
