Adjust Gate Close Switch

1.

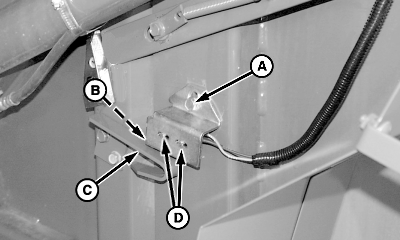

   E48468-UN-21JUL00

   A - Cap Screw

   B - Roller

   C - Ramp

   D - Screws

   Close gate. (Gate or tension cylinders must be fully retracted.)

---




2. If necessary, loosen screws (D) and move switch front-to-rear so roller (B) is centered on short leg of ramp (C).

3. Push switch arm against switch body and measure clearance between roller and ramp. Clearance must meet specifications.

   Item	Measurement	Specification
   Roller-to-Ramp	Clearance	0.05—2.00 mm (0.02—0.08 in.)

4. Loosen cap screw (A) and adjust switch up-and-down to obtain specified clearance.

5. Confirm switch operation by taking test readings using monitor-controller. (See TEST GATE CLOSE AND OVERSIZE BALE SWITCHES—MONITOR ASSISTED [CHANNELS 011 AND 012] in this section.)
