Prepare to Install Wheel Spindles and Tires

  1. IMPORTANT: When raising baler with a jack or hoist, place a jackstand or equivalent support under baler frame before removing shipping skid (B). Do not place jackstand under MegaWide™ Plus pickup frame.

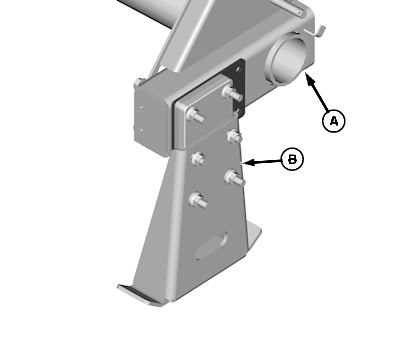

    E65991
    E65991-UN-14JUN12

    A - Location (Baler Frame)

    B - Shipping Skid

    Park baler on level surface.


  2. Using a jack or hoist, raise one side of baler. Place a jackstand or equivalent support under baler frame (A).

  3. Remove and discard shipping skid (B). Retain hardware and spacer plate, if equipped, to install spindles.

PP98408,0000FD1-19-20130207
