Install Wheel Spindles on 459, 459S, 559, and 559S Balers with MegaWide™ Plus Pickup and 21.5L x 16.1 Tires

IMPORTANT: No raised baler position is available with this spindle. Using spindle positions other than NORMAL position can lead to machine damage.

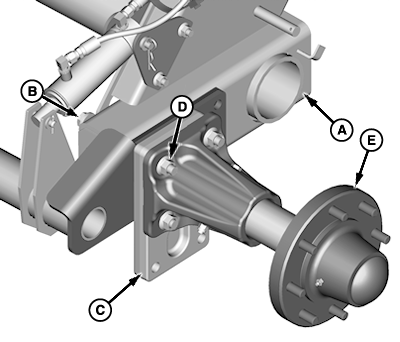

E66513-UN-10JUL12

Normal Position—Optional Bale Ramp Shown

A - Location (Baler Frame)

B - Cap Screw, M16 x 180-10.9 (4 used) (Without Bale Ramp)

B - Cap Screw and Flat Washer, M16 x 200-10.9 (4 used) (With Bale Ramp)

C - Spacer Plate

D - Flange Nut, M16 (4 used)

E - Spindle

Normal position, as shown, is recommended for all baling conditions.

• Pickup teeth do not touch the ground with pickup lowered, depending on tractor drawbar height.

NOTE: Cap screw heads are to face inside of frame; nuts on outside of wheel spindle.

1. IMPORTANT: When raising baler with a jack or hoist, place a jackstand or equivalent support under baler frame (A) before installing spindles and tires. Do not place jackstand under MegaWide™ Plus pickup frame.

   Park baler on level surface.

2. Using a jack or hoist, raise one side of baler. Place a jackstand or equivalent support under baler frame (A).

3. Install cap screws (C), spacer plate (C), flange nuts (D), and spindle (E).

4. Tighten flange nuts to specification.

   Item	Measurement	Specification
   Flange Nuts	Torque	350 N·m (255 lb.-ft.)

5. Repeat on opposite side.
