Install Slow Moving Vehicle (SMV) Sign in Operating Position

E67277
E67277-UN-10AUG12

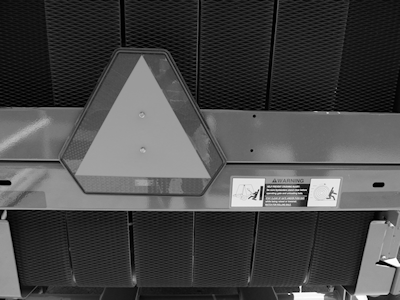

Without COVER-EDGE™ Net Wrap Unit Shown

Without COVER-EDGE™ Net Wrap Unit;

  1. Remove two M6 x 20 mounting cap screws, nuts and SMV sign.
  2. Reinstall sign with reflective side away from machine (as shown). Fasten sign to machine using existing hardware.

With COVER-EDGE™ Net Wrap Unit;

  1. Remove protective covering from sign.

PP98408,0000FDC-19-20130207
