Install Fire Extinguisher—459 and 559

A 9.5 L (2-1/2 gal.) pressurized-water fire extinguisher can be mounted in the holes that are provided on the baler. (See your John Deere dealer.)

1.

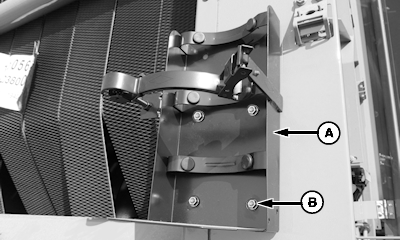

   E66360-UN-10AUG12


   E66365-UN-10AUG12


   E66366-UN-10AUG12

   A - Bracket

   B - Nuts (8 used)

   C - Washers (8 used)

   D - Cap Screws (4 used)

   E - Plate

   Install bracket (A) using nuts (B), washers (C), cap screws (D), and plate (E).

---




2. IMPORTANT: If baler is subjected to cold weather, a nonflammable antifreeze solution must be used to prevent damage to extinguisher.

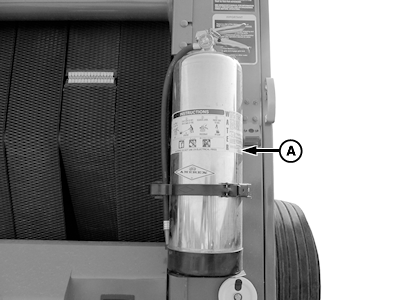

   E66363-UN-03JUL12

   A - Fire Extinguisher

   Fill, pressurize, and test fire extinguisher.

---




3. Secure fire extinguisher (A) to bracket.
