Check Front Sheet-to-Rubber Roll Clearance

1. Open net wrap cover. Ensure that brake lever is engaged.

2. Remove net material.

3. Turn tractor key to ON position. Turn monitor-controller ON.

4. Ensure that monitor is in NET mode. Turn monitor OFF.

5.
   E52520-UN-26JUN03


   E80107-UN-29SEP15

   A - COUNTER Key

   B - EXTEND Key

   C - RETRACT Key

   D - Wire Harness Connector

   Press and hold COUNTER key (A) and press PLUS key to advance to CH018. Release COUNTER key (A).

---




6. Press and hold EXTEND key (B) to move counterknife to the up position.

7. CAUTION: To avoid personal injury from unexpected knife movement, disconnect net wrap actuator wire connector or power plug when performing adjustment or working in area.

   Turn monitor-controller selector switch to OFF. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from power source or disconnect plug at net wrap wire harness connector (D).

8.
   E57351-UN-19JUN09

   A - Front Sheet

   B - Rubber Roll

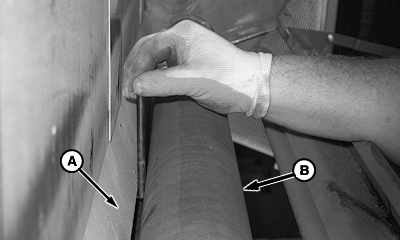

   Check dimension between front sheet (A) and entire length of rubber roll (B) with drill bits.

   Item	Measurement	Specification
   Front Sheet-to-Rubber Roll	Distance	3—6 mm (0.12—0.24 in.)

---




9. If dimension is not within specification, bend front sheet to obtain 3—6 mm (0.12—0.24 in.) clearance. (See your John Deere dealer.)
