Install BaleTrak™ Pro Monitor-Controller in ComfortGard™ Cab

NOTE: On some tractors, it is necessary to remove the foam corner post panel to gain access to mounting studs. Panel will need holes drilled in order to fasten bracket (see photo).

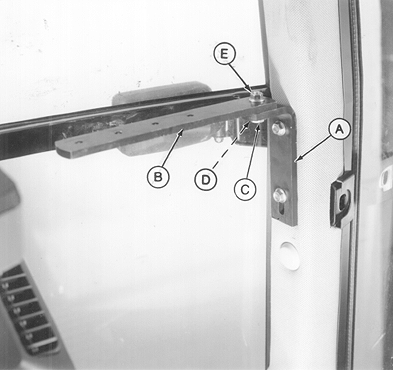

  1. E38450
    E38450-UN-25APR95

    A - Angle

    B - Monitor-Controller Strap

    C - Cap Screw, M10 x 35 mm

    D - Washer

    E - Flange Nut

    Remove top two plugs from lower right-hand front cab post.


  2. Install angle (A) to cab post. Fasten with two M10 x 20 flange-head cap screws.

  3. Install monitor-controller strap (B) to angle (A). Fasten with cap screw (C), washer (D) and flange nut (E).

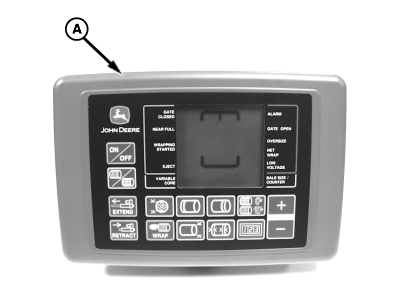

  4. E52435
    E52435-UN-16JUN03

    A - Monitor-Controller

    Put monitor-controller (A) pivot bracket on top of mounting bracket. Fasten with M6 x 16 cap screw.


  5. Route harness along right-hand side of cab, away from operating levers, and toward the rear of cab.

  6. RW22076
    RW22076-UN-04DEC92

    John Deere 7000 Series Tractor

    A - Convenience Outlet

    Connect harness power plug to convenience outlet (A).


  7. Route harness through grommet in back of cab, or drill a 44 mm (1-3/4 in.) diameter hole in rear wall if necessary.
