Route Twine from Left-Hand Twine Box (Front Twine Arm)

1.
   E54707-UN-26JUN06


   E54708-UN-20JUL06


   E54709-UN-07JUL06

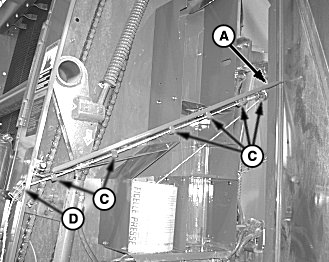

   A - Twine Guide Arm

   B - Notch

   C - Guides

   D - Tension Plates

   Place twine ball into lower shelf.

---

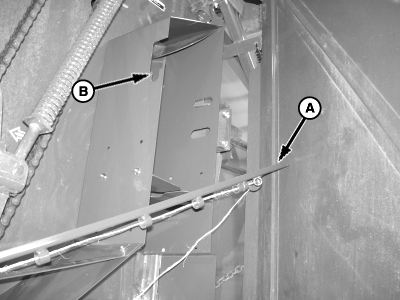

2. Remove twine arm (A) from notch (B) and lower to thread twine.

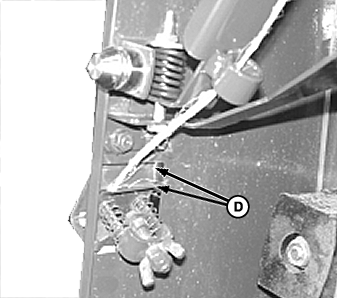

3. Route twine through guides (C) and tension plates (D).

   A twine threading label is located on right-hand side of baler, inside the door.

4.
   E54710-UN-26JUN06

   A - Twine Guide Arm

   B - Twine Box Notch

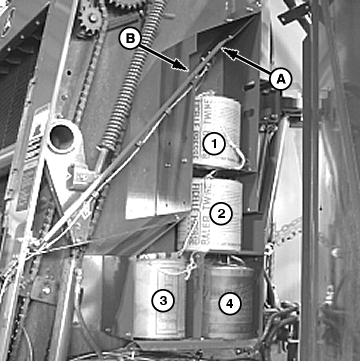

   Place twine guide arm (A) into notch (B).

---




5. Move twine ball to top shelf in twine box.

6. Fill empty shelves with twine.

7. Join twine by tying outside twine end from twine ball number 1 to center twine end of ball number 2.

8. Join twine ball number 2 to twine ball number 3, and number 3 to number 4.

9. NOTE: Check that twine indicator (A) is free to spin without twine.


   E54349-UN-06JUL05

   Left-Hand Side Shown

   A - Twine Moving Indicator Wheel

   B - Twine Guide

   C - Twine

   D - Baler Front Sheet

   When using plastic twine or small sisal twine, route twine a FULL wrap around twine moving indicator (A). Twine must wrap behind strand which comes down from twine box.

---




10.

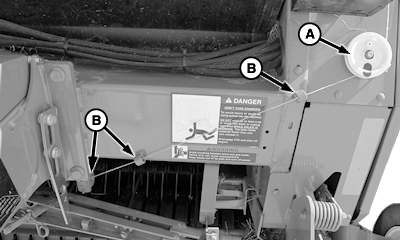

    E67415-UN-17AUG12

    569 Silage Special Shown

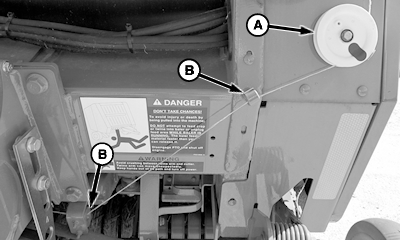

    E67416-UN-17AUG12

    469 Silage Special Shown

    A - Twine Indicator

    B - Twine Guides

    When using large sisal twine, route twine around indicator (A) approximately one-quarter wrap as shown. Wrapping large sisal twine a full turn around the indicator can cause the twine to cling to itself and break, or cause excessive twine tension.

---




11. NOTE: If equipped with MegaTooth™ pickup, remove quick-lock pin and rotate curtains away from front frame.

    Route twine through guides (B).

12. CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

    Stay out of the path of twine arms at all times when power to twine arms is ON.


    E47598-UN-07JAN00


    E40140-UN-21JUN96

    A - Twine Guides

    B - Twine Arm Guides

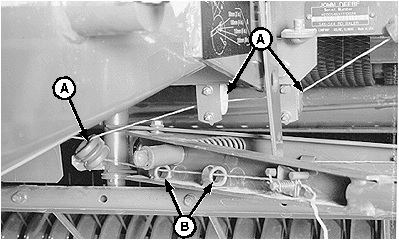

    Route twine through guides (A) and front twine arm guides (B).

    A twine threading label is located on right-hand side of tongue.

---




13. NOTE: Remove any crop buildup from tension plate area before threading twine.


    E40524-UN-15JUN96


    E54749-UN-07JUL06

    A - Twine Tension Plate

    B - Twine Tube

    C - Twine Tension Plates

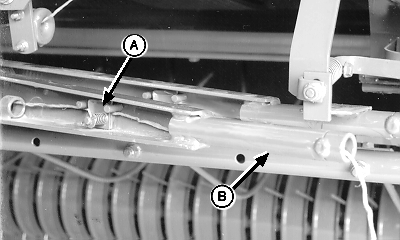

    Route twine over tension plate (A) and under guide pins. Pull on twine to get twine between plates.

---




14. Pull twine through twine tube (B). Pull on twine to remove slack between guides. Twine pull must meet specifications with twine perpendicular to the twine arm. To adjust twine tension (C), see ADJUST TWINE TENSION in Operating the Baler section.

    Item	Measurement	Specification
    Twine Tension	Pull (Force)	22—45 N (5—10 lb.-force)

15. Cut twine 305—381 mm (12—15 in.) beyond twine tube (B).

NOTE: If equipped with MegaTooth™ pickup, return curtains to position and fasten with quick-lock pins.
