Convert Twine Ball Storage (If Equipped)

Eight Twine Ball To Ten Twine Ball Storage

NOTE: Maximum twine ball height with ten ball option is 210 mm (8-1/4 in.).

E54624-UN-26JUN06

E54616-UN-26JUN06

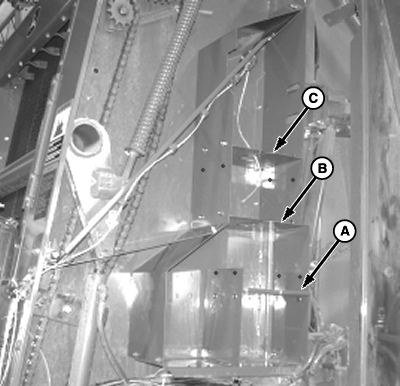

A - Lower Shelf

B - Top Shelf

C - Additional Shelf

1. Cut twine end, leaving twine threaded through guides.

2. Remove twine balls from shelves.

3. Move lower shelf (A) down to position shown, with mounting sides pointing down.

4. Move top shelf (B) down to center position shown, with mounting sides pointing up.

5. Install additional shelf (C) to top position shown with four M8 x 16 round-head bolts and four M8 flange nuts. Install shelf with mounting sides pointing up.

6. See (ROUTE TWINE FROM RIGHT-HAND and LEFT HAND SIDE twine box) to route twine.

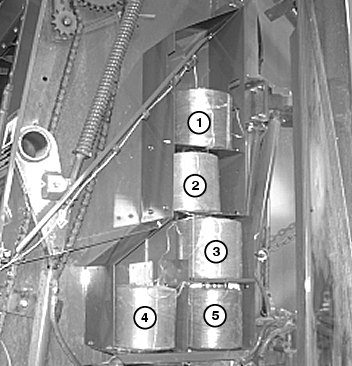

7. Join twine balls in sequence (1—5) as shown.

8. Repeat procedure on opposite side.

Ten Twine Ball to Eight Twine Ball Storage

E54712-UN-27JUN06

E54713-UN-29MAY07

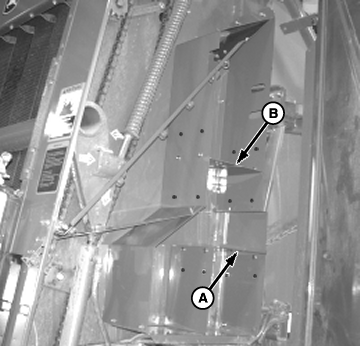

A - Lower Shelf

B - Top Shelf

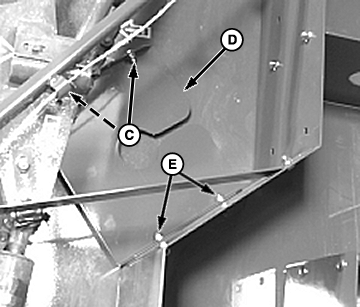

C - Round-Head Bolts and Nuts
(2 used)

D - Shelf Storage Position

E - Round-Head Bolts and Nuts
(2 used)

1. Cut twine, leaving twine threaded through guides.

2. Move lower shelf (A) up to position shown, with mounting sides pointing down.

3. Move top shelf (B) down to position shown, with mounting sides pointing up.

4. Remove center shelf. Place two round-head bolts and nuts (C) in one mounting side and install shelf into storage position (D). Fasten shelf in place with remaining two round-head bolts and nuts (E).

5. Repeat procedure on opposite side.
