Wheel Spindle Positions on 469, 469S, 569, and 569S Balers with MegaWide™ Plus Pickup and 21.5L x 16.1 Tires

IMPORTANT: No raised baler position is available with this spindle. Using spindle positions other than NORMAL position can lead to machine damage.

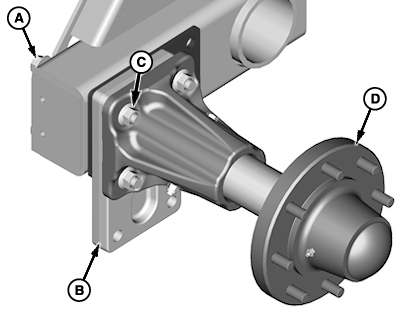

E66514-UN-17JUL12

Normal Position

A - Cap Screw, M16 x 180-10.9 flange Head (4 used)

B - Spacer Plate

C - Flange Nut, M16 (4 used)

D - Spindle

Normal position is recommended for all baling conditions.

• Recommended for push bar.
• Pickup teeth do not touch the ground with pickup lowered, depending on tractor drawbar height.

NOTE: Cap screw heads are to face inside of frame; nuts on outside of wheel spindle.

1. Install cap screws (A), spacer plate (B), flange nuts (C), and spindle (D).

2. Tighten nuts to specification.

   Item	Measurement	Specification
   Wheel Spindle Mounting Hardware	Torque	350 N·m (255 lb.-ft.)

3. Repeat on opposite side.
