Tire Installation and Wheel Nut Torque

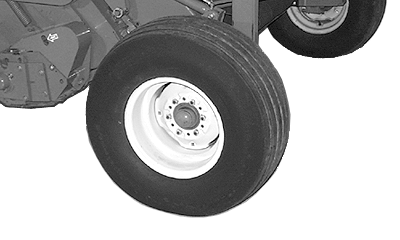

E48489-UN-31JUL00

IMPORTANT: Install wheels with valve stems toward the outside. Incorrect assembly can cause wheel nuts to loosen.

Whenever a wheel has been removed and installed, check wheel nut torque after one hour of operation and repeat until nuts maintain specified torque.

1. Install wheel with valve stem toward the outside. Fasten with six 1/2 in. nuts.

2. Whenever a wheel has been removed and installed, check wheel nut torque after one hour of operation and repeat until nuts maintain specified torque. Wheel nuts must be tightened to specifications.

   Item	Measurement	Specification
   Wheel Nuts	Torque	115 N·m (85 lb.-ft.)

3. Verify tire inflation pressure.

   Tires	kPa (bar) (psi)
   14L x 16.1, 8 PR	207 (2.1) (30)

4. Repeat procedure on opposite side.

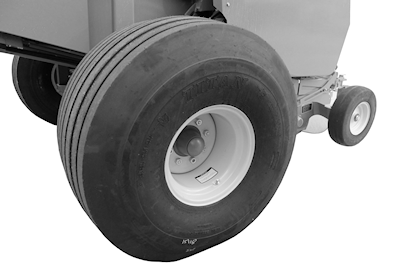

E62049-UN-30MAR12

21.5L x 16.1 Tires

IMPORTANT: Install wheels with valve stems toward the OUTSIDE. Incorrect assembly can cause wheel nuts to loosen.

Exceeding recommended tire pressure can damage baler frame.

Whenever a wheel has been removed and installed, check wheel nut torque after one hour of operation and repeat until nuts maintain specified torque.

1. Install wheel with valve stem toward the outside. Fasten with eight 5/8 in. nuts.

2. Whenever a wheel has been removed and installed, check wheel nut torque after one hour of operation and repeat until nuts maintain specified torque. Wheel nuts must be tightened to specifications.

   Item	Measurement	Specification
   Wheel Nuts	Torque	237 N·m (175 lb.-ft.)

3. Adjust tire inflation pressure.

   Tires	kPa (bar) (psi)
   21.5L x 16.1, 10 PR	103 (1.0) (15)

4. Repeat procedure on opposite side.
