Open and Close Net Wrap Cover

  1. CAUTION: Be sure PTO is disengaged, tractor engine is shut off, and monitor-controller power plug is disconnected from tractor convenience outlet before opening cover.

    Cover is spring loaded and will move up quickly when released.

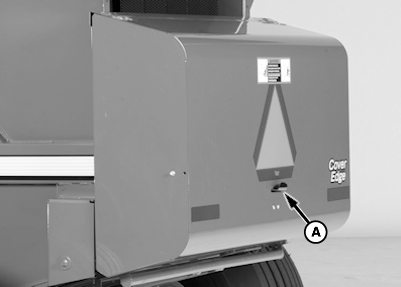

    E69391
    E69391-UN-08FEB13

    A - Handle

    Pull rearward on handle (A) and raise cover.


  2. To close, pull cover down and push shut.

PP98408,0000FFC-19-20130212
