Release Net Wrap Brake

1.

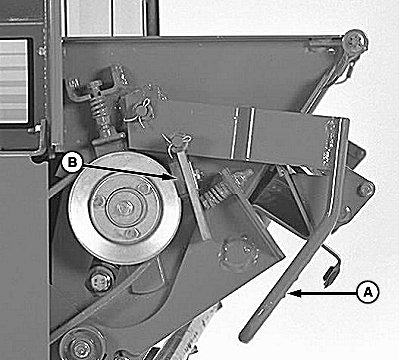

   E48893-UN-07SEP00

   A - Lever

   B - Brake Pad

   Disengage PTO, shut off tractor engine, and disconnect monitor-controller power plug from tractor convenience outlet.

---




2. Open net wrap cover.

3. Move lever (A) out and back to disengage roller brake pad (B).

4. NOTE: Brake torque must be checked. (See CHECK AND ADJUST NET WRAP FEED ROLL BRAKE in Service—Net Wrap section.)

   To reengage net wrap drive, return lever (A) to engaged position and check that pad (B) contacts belt pulley.

5. Close net wrap cover.
