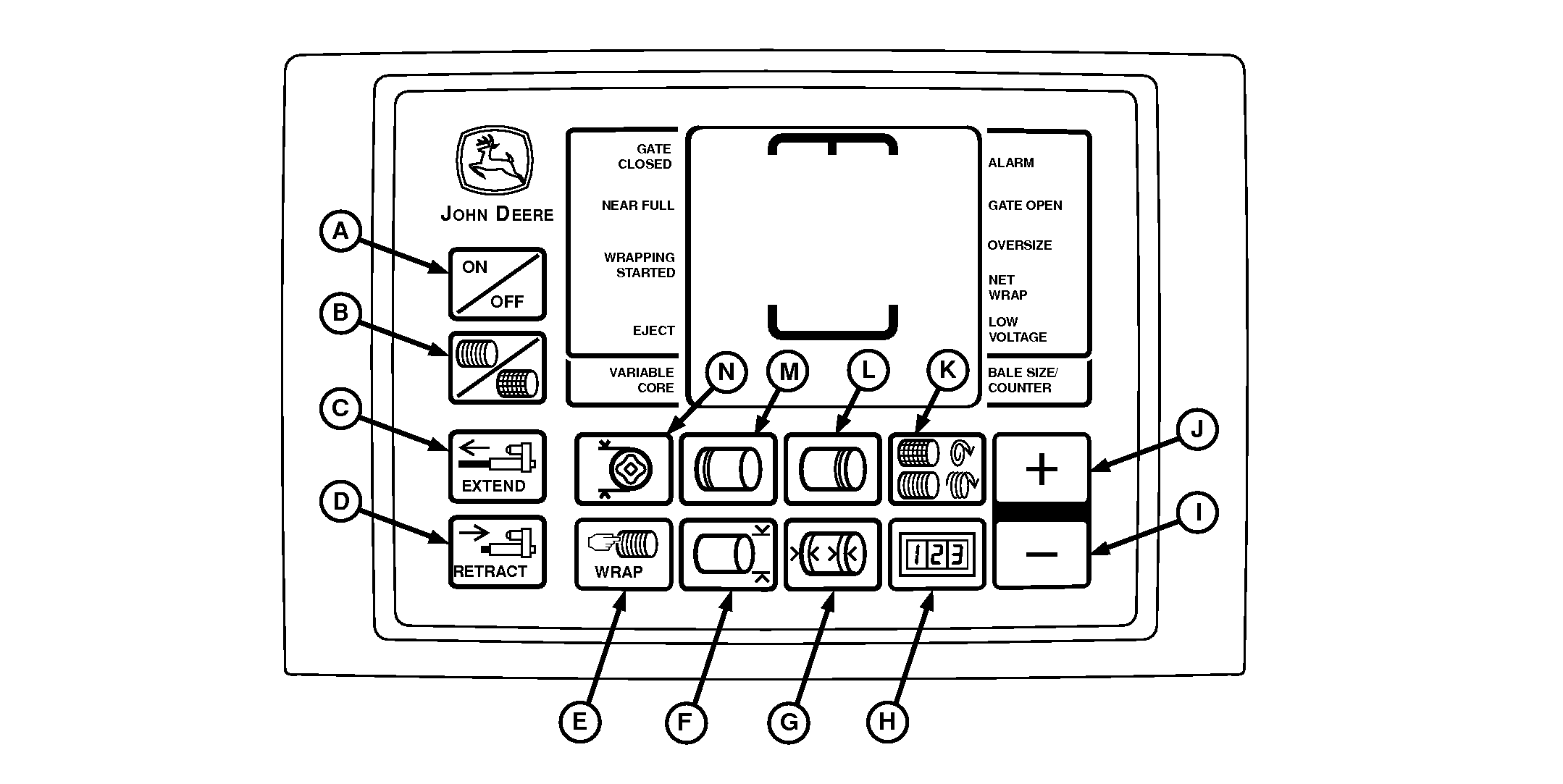

BaleTrak™ Pro Monitor-Controller Keys and Switches

E52458
E52458-UN-19JUN03

A - Monitor ON or OFF Switch

B - Selector Switch (Twine or Net1)

C - Actuator Extend—Manual (Twine Only2)

D - Actuator Retract—Manual (Twine Only 2)

E - Wrap Cycle—Manual Start

F - Bale Diameter

G - End Wrap Distance (Twine Only)

H - Bale Counters

I - Minus Key

J - Plus Key

K - Twine Spacing or Number of Net Wraps

L - Number of Right-Hand End Wraps (Twine Only)

M - Number of Left-Hand End Wraps (Twine Only)

N - Variable Core Diameter1

1 Optional equipment.
2 Net actuator does not move when EXTEND or RETRACT keys are pressed in Net-mode. To move net actuator for servicing net unit, see TEST TWINE OR NET WRAP ACTUATOR CURRENT (CHANNEL 018), or see TEST TWINE OR NET WRAP ACTUATOR VOLTAGE (CHANNEL 019) in this section.

PP98408,0001019-19-20130211
