Slip Clutch Alert (MegaWide™ Plus and MegaTooth™ Pickups Only)

E52931
E52931-UN-12NOV03

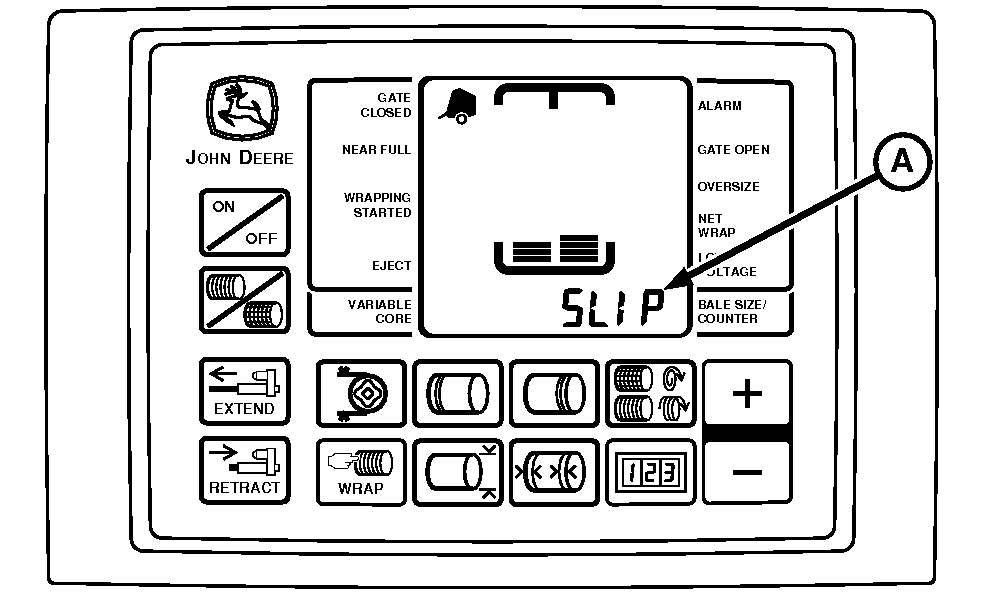

A - Digital Display

This system alerts operator by an audible alarm and the word SLIP (A) in the digital display when either the main drive clutch on the PTO or the drive roll slip clutches slip.


Understanding Slip Clutch Alert System

E69392
E69392-UN-11FEB13

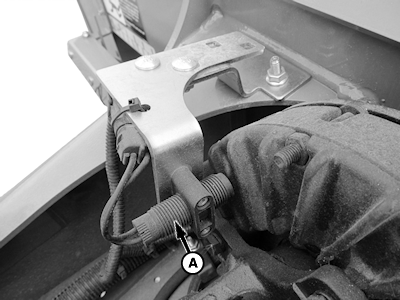

PTO Sensor (540 rpm) Shown

E69393
E69393-UN-08FEB13

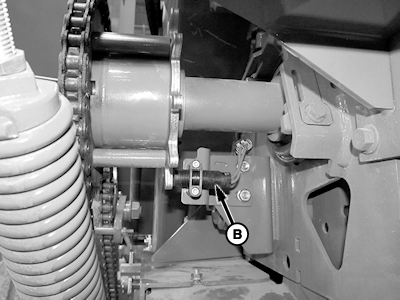

Lower Drive Roll (Pickup) Sensor Shown

A - Driveline Sensor

B - Drive Roll Sensor

PTO driveline sensor (A) measures input speed of the PTO driveline. Drive roll sensor (B) measures output speed of the pickup slip clutch. The monitor display compares these speeds, and activates slip alarm if speed drops below 10 percent of the calculated operating speed for more than 1 second. The system informs the operator if either of the two clutches is slipping.


Speed Compensation of Wrapping Program

The speed compensation program applies desired number of twine or net wraps, regardless of PTO speed.

For example:

If monitor display is set for 4 in. twine spacing and wrapping is done at less than full PTO speed, 4 in. twine spacing will be maintained.

If monitor display is set for two net wraps and wrapping is done at less than full PTO speed, two net wraps will be maintained.

The PTO driveline sensor (A) must be activated within the monitor display for proper operation of the speed compensation program. (See NET WRAP, SLIP CLUTCH ALERT, AND VARIABLE CORE FEATURES [TURNING ON and OFF] in the Service section.


Turn PTO Speed Sensor ON and OFF:

  • PTO speed sensor can be turned OFF and ON by accessing channel 204.
  • Feature can turned ON by changing value to 540 or 1000 rpm.
  • Entire slip clutch feature alert feature can be turned OFF by changing value to 0.

Turning Lower Drive Roll (Pickup) Speed Sensor ON and OFF:

  • Pickup rpm sensor can be turned OFF and ON by accessing channel 205.
  • Feature can be turned ON by changing value to 310 rpm.
  • Pickup rpm sensor can be turn OFF by changing value to 0.
  • Turning OFF the pickup sensor on channel 205 and turning ON PTO sensor on channel 204 still allows automatic speed compensation during wrapping cycle.
