Set Number of Net Wraps (If Equipped)

1. NOTE: Net wrap settings range between 1.5—10 wraps (in 0.1 wrap increments), with initial setting of two wraps.

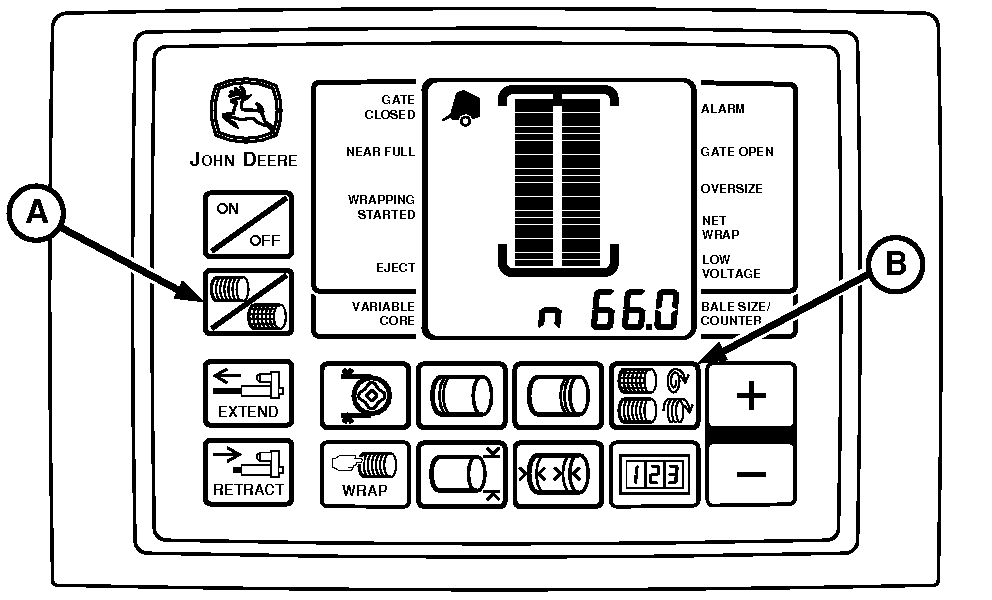

   E52448-UN-18JUN03

   A - NET Symbol

   B - NET WRAP Key

   Turn tractor key to ON position. Do not start tractor engine. Turn monitor-controller ON.

---




2. Press and hold NET WRAP key (B). Press PLUS or MINUS keys until desired number of wraps (1.5—10.0) appears in digital display.

3. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

4. NOTE: Recommended Wraps

   Bales stored with less than two wraps of net wrap can be damaged by handling or weather conditions.

   Different crops require a different number of wraps for effective baling.

   Minimum recommendations are:

   • 2 Wraps for Hay
   • 3 Wraps for Straw, Wheat Hay, and Cereal Grains
   • 4 Wraps for Corn Stalks, Sudex, Hay Grazer, and Milo Stalks



   If machine rpm is less than rated PTO speed, use the following chart as a guideline for desired wraps.

   NET WRAP CHART
   Engine RPM	Desired No. Of Wraps	Approximate Monitor Setting Needed
   Rated PTO	2	2
   	3	3
   1800 RPM	2	2.4
   	3	3.6
   1500 RPM	2	2.9
   	3	4.3
   1300 RPM	2	3.3
   	3	5.0

   NOTE: Slip clutch alert, if turned on, applies desired number of net wraps regardless of PTO speed.
