View and Reset Bale Counters

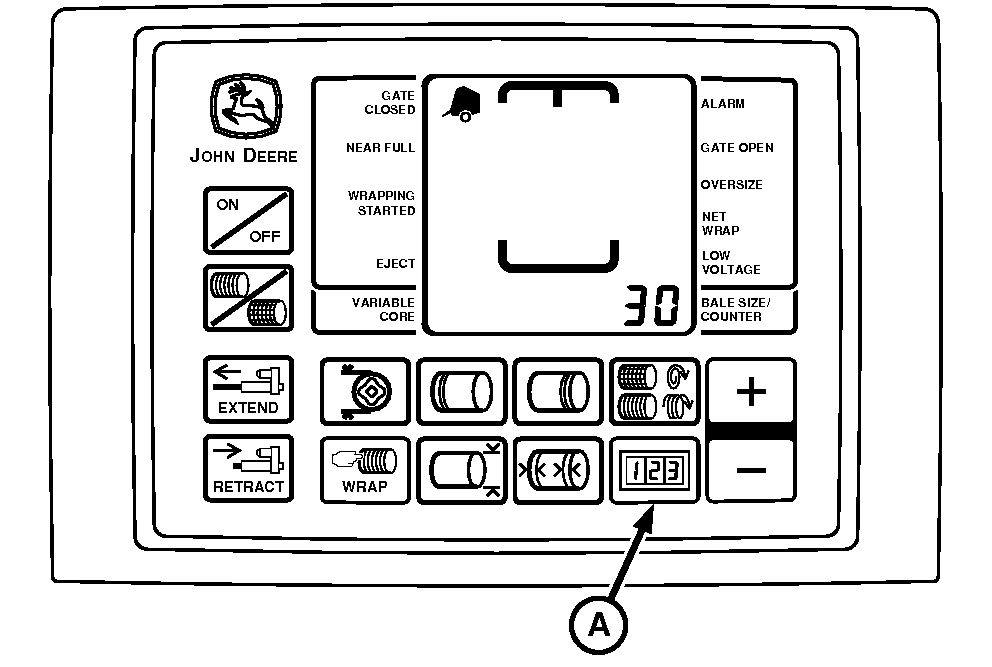

E52449-UN-02JUN08

A - COUNTER Key

The RESETTABLE counter can be cleared or modified as desired, while the TOTAL BALE counter cannot be reset or cleared. A wrap and gate latch open cycle will add one bale to both of the counters.

To view counter memory:

1. NOTE: When key (A) is pressed, display will show bale count for 6 seconds, then revert to regular display.

   Depress COUNTER key (A) once to display RESETTABLE counter.

2. Depress COUNTER key twice to display TOTAL BALE counter.

To clear RESETTABLE counter memory:

1. Press COUNTER key (A) once, then release.

2. While count is displayed, press and hold MINUS key until display shows 0000.

   NOTE: Bale count in RESETTABLE counter can be increased to add fields together, or decreased, to remove aborted bales (such as bales not wrapped correctly). Adding or removing bales from RESETTABLE counter will not affect the TOTAL BALE counter.

To change number of bales in RESETTABLE counter:

1. Press and hold COUNTER key (A).

2. While holding key (A), press PLUS or MINUS key to change bale count as desired.
