Bypass Switch (Twine Wrap Only)

E40009
E40009-UN-22MAY96

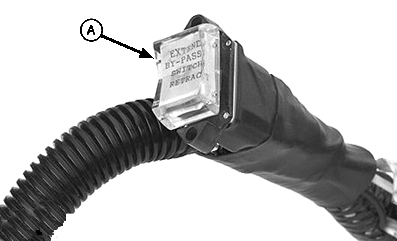

A - Bypass Switch

Bypass switch (A) allows direct operation of the twine actuator in the event of an electronic failure. Move switch to retract or extend twine actuator. Actuator is fully retracted when twine arms are in home position.

To use bypass switch:

  1. Unplug TWINE ACTUATOR connector from NORMAL OPERATION connector in monitor-controller harness near rocker switch.

  2. Remove dust cap from BYPASS connector. Install dust cap on NORMAL OPERATION connector.

  3. Plug TWINE ACTUATOR connector into BYPASS connector.

    NOTE: Twine arms will not cycle automatically if bypass switch is connected.

To return to electronic operation:

  1. Unplug TWINE ACTUATOR connector from BYPASS connector.

  2. Remove dust cap from NORMAL OPERATION connector. Install dust cap on BYPASS connector.

  3. Plug TWINE ACTUATOR connector into NORMAL OPERATION connector.
