Twine Feature (Channel 202)
(Turning On and Off)

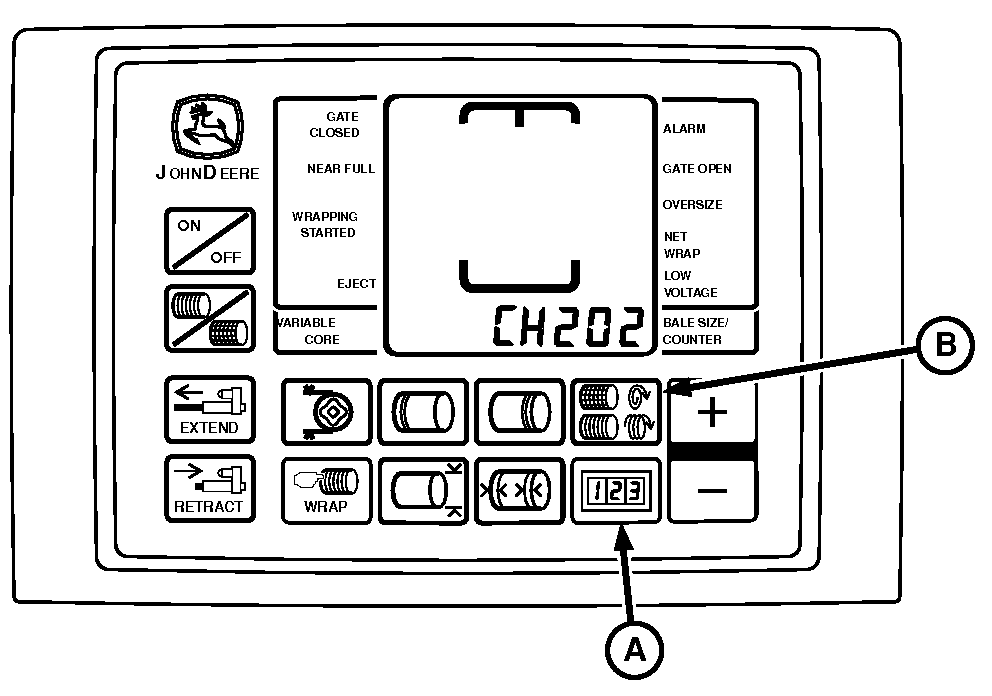

E57095
E57095-UN-08MAY09

A - COUNTER Key

B - NUMBER OF WRAPS Key

The twine feature can be turned OFF or ON by accessing Channel 202.

NOTE: The twine, net wrap, slip clutch alert, and optional variable core features will not operate correctly unless the model number displayed on monitor-controller matches baler model number.

NOTE: If both twine and net wrap features are turned OFF, the monitor will consider the twine feature ON.


Turning Feature On and Off:

  1. Turn tractor key to ON position. Do not start tractor.

  2. Press and hold both COUNTER key (A) and NUMBER OF WRAPS key (B) while turning monitor-controller to ON. CH201 must be displayed.

  3. Release both keys. Baler model is displayed.

  4. Press and hold COUNTER key (A) and press the PLUS key until CH202 is displayed.

  5. Release COUNTER key (A).

  6. Press PLUS or MINUS key to change displayed value to 0 (twine OFF) or 1 (twine ON).

  7. Turn monitor-controller OFF to enter setting into memory.

  8. Turn monitor-controller ON to verify baler model number. Model number is displayed approximately 2 seconds. If displayed baler model number is incorrect, see BALER MODEL PROGRAM (CHANNEL 201) in this section.

  9. Turn tractor key to OFF position and remove key.
