Adjust Gathering Wheel Height (If Equipped)

IMPORTANT: Gathering wheels must never be in heavy contact with the ground or damage to gathering wheels can occur.

NOTE: Gathering wheels are not available for the MegaWide™ Plus pickup.

NOTE: This is an initial setting; final adjustment will be determined by field conditions.

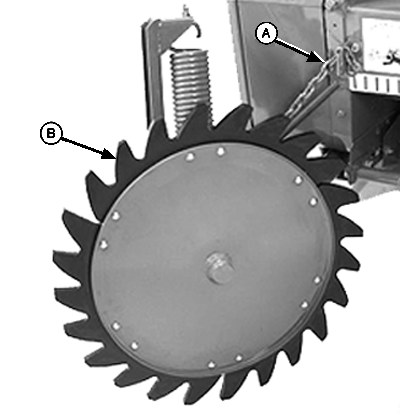

  1. E40021
    E40021-UN-29MAY96

    A - Chain

    B - Gathering Wheel

    Remove chain (A) from chain anchor support and lower wheel (B) to ground.


  2. Raise chain (A) one link and install back in chain anchor support. Wheel must be approximately 25 mm (1 in.) from the ground.

    If less than one chain link is needed for an adjustment, twist the chain and install back in chain anchor support.

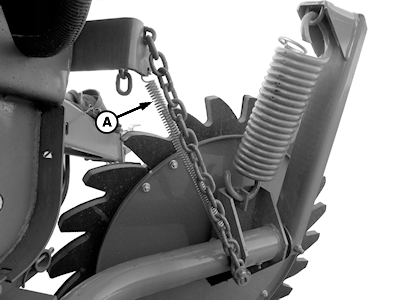

  3. E67382
    E67382-UN-15AUG12

    A - Spring

    Spring (A) is hooked in a hole in chain anchor support and a link in the lower end of the chain to help the gathering wheel float over irregular ground.

PP98408,0001051-19-20130211
