Lock Out Bale Push Bar (If Equipped)

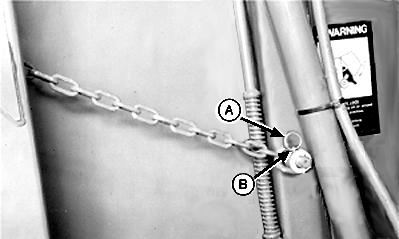

E39708
E39708-UN-19JUL96

A - Retaining Ring

B - Pin

Bale push bar will remain in home position, regardless of gate movement, when in the locked out position.

To lock out push bar:

  1. Remove retaining ring (A) from pin (B).

  2. Remove pin (B) and washer from gate pin.

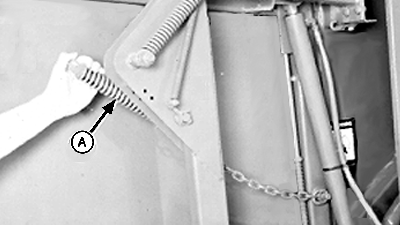

  3. E39709
    E39709-UN-22MAY96

    A - Spring

    Remove tension from chain by rotating spring (A). Remove end chain link from gate pin.


  4. Let chain hang free to remove any twists.

  5. IMPORTANT: Both chains must be attached to lockout pins to lock out push bar. Damage can occur to the push bar and gate if one chain is left attached to the gate pin or is unhooked.

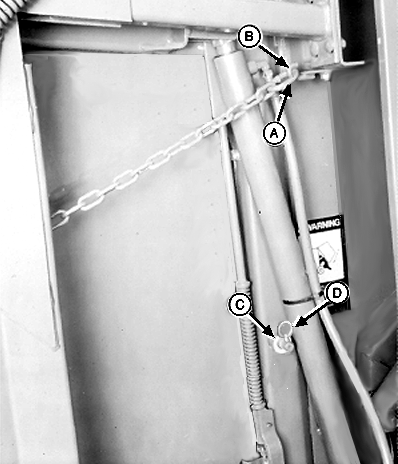

    E39710
    E39710-UN-19JUL96

    A - Chain Link

    B - Lockout Hook

    C - Washer

    D - Retaining Ring

    Attach the end chain link (A) on lockout hook (B). Release spring.


  6. Install washer (C). Put pin UP through gate pin and fasten with retaining ring (D).

  7. Repeat on opposite side.

NOTE: If operating the baler with push bar locked out, it will be necessary to back up baler before ejecting the bale.
