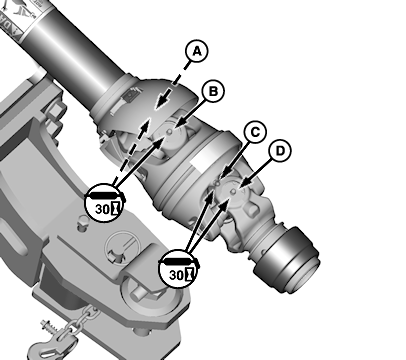

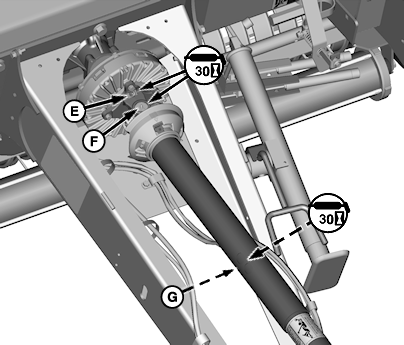

Every 30 Hours

Pickup Lift Crank

E47610
E47610-UN-07JAN00

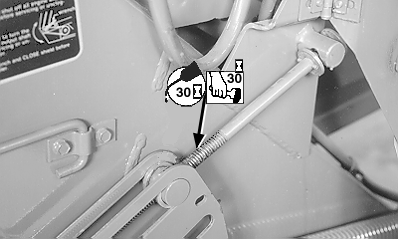

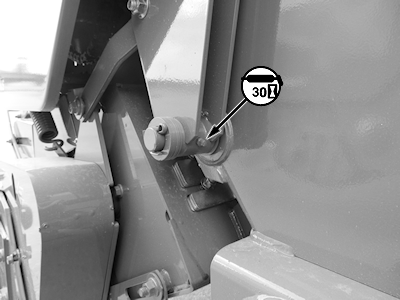

A - Pickup Crank Thread

Lubricate crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.

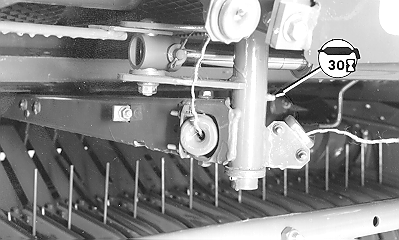

Twine Arms and Twine Actuator Rod

CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arm is ON.

E47598
E47598-UN-07JAN00

E39603
E39603-UN-20NOV95

469 and 469S

E39777
E39777-UN-22FEB96

569

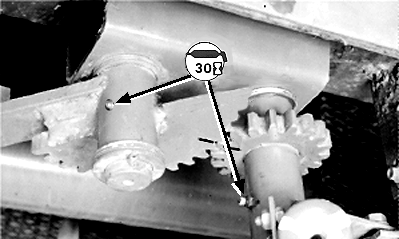

If equipped with a MegaTooth™ pickup; Rotate curtains out of the way to access lubrication fittings and actuator rod.

Clean off foreign material or crop buildup from actuator rod.

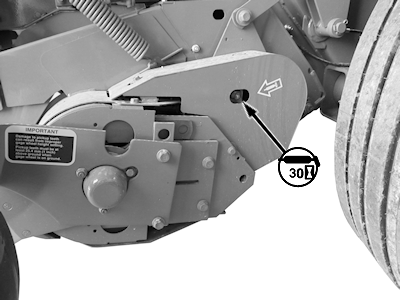

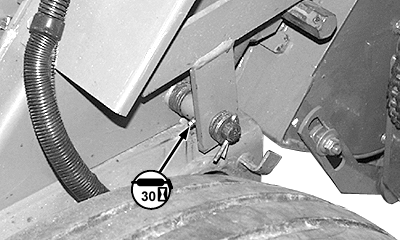

Pickup Drive Idler Pivot

E48763
E48763-UN-02AUG00

Right-Hand Side

NOTE: Shield removed for photographic purpose.

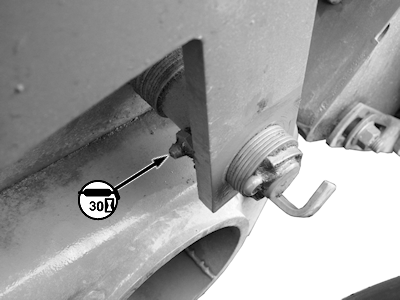

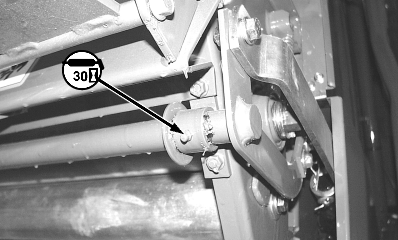

COVER-EDGE™ Net Wrap Counterknife Arm Pivot (If Equipped)

E48340
E48340-UN-12JUL00

Right-Hand Side Shown

IMPORTANT: Do not over lubricate counterknife arm pivot lubrication fittings. This will result in grease getting onto the rubber roll, causing wrappage.

Lubrication fittings are located on both left and right-hand sides.
