Every 100 Hours
Gear Case
IMPORTANT: Do not over fill gear case as this will result in overheating and oil leakage.

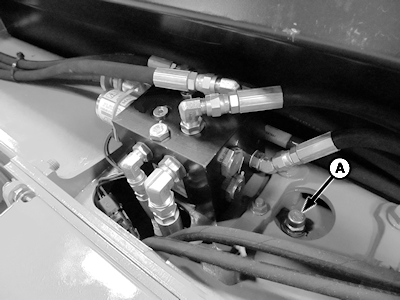

E61068-UN-16MAR12
A - Dipstick
Check level of lubricant with dipstick (A). Lubricant must fall between grooves on the dipstick.Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill gear case once each season.
| Item | Measurement | Specification |
| Gear Case | Capacity | 1.2 L (1.25 qt.) |
Tighten dipstick to specification.
| Item | Measurement | Specification |
| Dipstick | Torque | 29 ± 3 N·m (21 ± 2 lb.-ft.) |
|
PP98408,0001083-19-20130211 |
