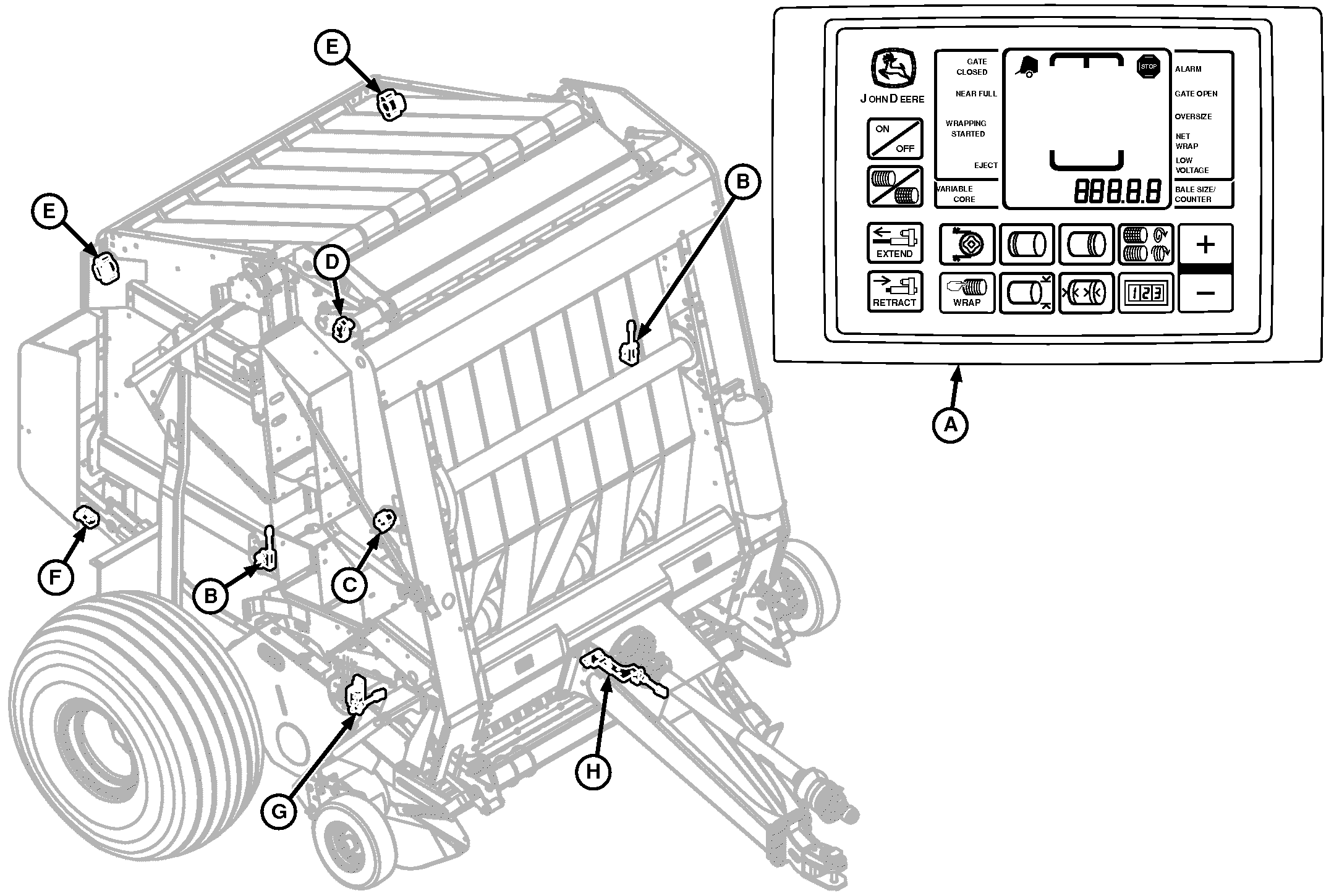

BaleTrak™ Pro Component Locations

E69510-UN-26MAR13

A - Monitor-Controller (located on tractor)

B - Gate Latch Switches

C - Bale Diameter Sensor

D - Oversize Bale Switch

E - Bale Shape Sensors

F - Net Wrap Switch (if equipped)

G - Pickup Slip Clutch Alert Sensor

H - PTO Slip Clutch Alert Sensor
