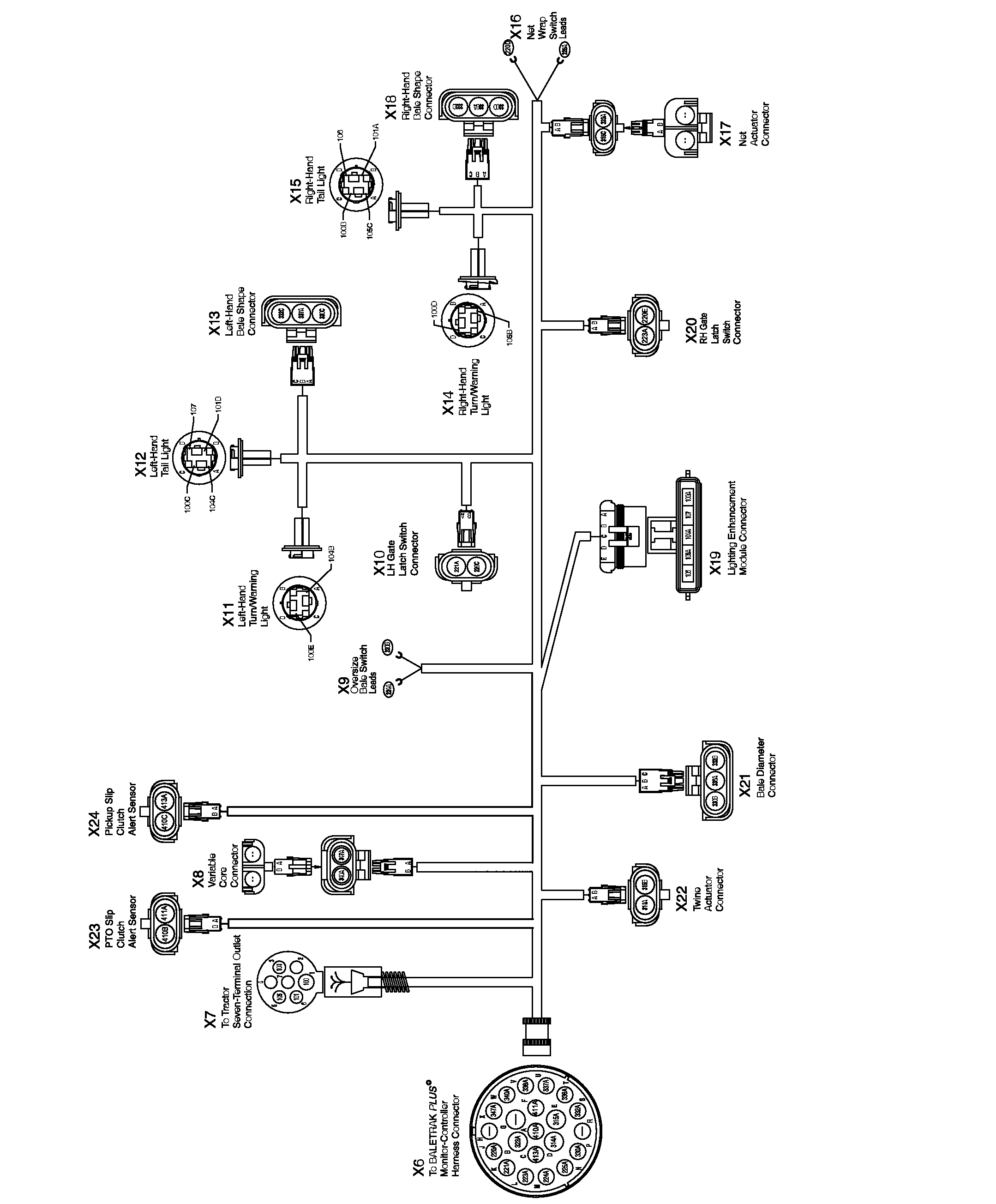

Wire Harness Diagram—Baler

E57251-UN-12JUN09

X6 To BaleTrak™ Pro Monitor-Controller Harness Connector
Terminal	Circuit	Function	Wire Color
A	410A	Open
B	323A	Net Actuator	Orange
C	413A	Open
D	314A	Twine Actuator	Yellow
E	315A	Twine or Net Actuator	Green
F	411A	Open
G		Open
H		Open
J	220A	Ground	Black
K	221A	Left Gate Latch Switch	Brown
L	223A	Right Gate Latch Switch	Orange
M	224A	Oversize Bale Switch	Yellow
N	225A	Net Switch	Green
P	330A	Ground	Black
R		Open
S	332A	Sensor	Red
T	336A	Bale Size Sensor	Blue
U	337A	Left Bale Shape Sensor	Purple
V	338A	Right Bale Shape Sensor	Gray
W	340A	Ground	Black
X	347A	Power	Purple

X7 To Tractor Seven-Terminal Outlet Connector
Terminal	Circuit	Function	Wire Color
1	100	Ground	Black
2		Open
3	104	Left-hand Turn or Warning Light	Yellow
4		Open
5	105	Right-hand Turn or Warning Light	Green
6	101	Tail Lights	Brown
7		Open

X8 Variable Core Connector
Terminal	Circuit	Function	Wire Color
A	347A	Power	Purple
B	340A	Ground	Black

X9 Oversize Bale Switch Leads
Terminal	Circuit	Function	Wire Color
—	224A	Power	Yellow
—	220B	Ground	Black

X10 Left-Hand Gate Latch Switch Connector
Terminal	Circuit	Function	Wire Color
—	220C	Ground	Black
—	221A	Power	Brown

X11 Left-Hand Turn or Warning Light Connector
Terminal	Circuit	Function	Wire Color
A	104B	Power	Yellow
B		Open
C		Open
D	100E	Ground	Black

X12 Left-Hand Tail Light Connector
Terminal	Circuit	Function	Wire Color
A	104C	Left-hand Turn or Warning Light	Yellow
B	101B	Left-hand Tail Lamp	Brown
C	100C	Ground	Black
D	107	Left-hand Flasher	Orange

X13 Left-Hand Bale Shape Connector
Terminal	Circuit	Function	Wire Color
A	330C	Sensor	Black
B	337A	Left Bale Shape Sensor	Purple
C	332C	Ground	Red

X14 Right-Hand Turn or Warning Light Connector
Terminal	Circuit	Function	Wire Color
A	105B	Power	Green
B		Open
C		Open
D	100D	Ground	Black

X15 Right-Hand Tail Light Connector
Terminal	Circuit	Function	Wire Color
A	105C	Right-hand Turn or Warning Light	Green
B	101A	Right-hand Tail Lamp	Brown
C	100B	Ground	Black
D	106	Right-hand Flasher	Violet

X16 Net Wrap Switch Leads
Terminal	Circuit	Function	Wire Color
—	220D	Ground	Black
—	225A	Power	Green

X17 Net Actuator Connector
Terminal	Circuit	Function	Wire Color
A	315C	Net Actuator	Green
B	323A	Net Actuator	Orange

X18 Right-Hand Bale Shape Connector
Terminal	Circuit	Function	Wire Color
A	330D	Ground	Black
B	338A	Right Bale Shape Sensor	Gray
C	332D	Sensor	Red

X19 Lighting Enhancement Module Connector
Terminal	Circuit	Function	Wire Color
A	100A	Ground	Black
B	107	Left-hand Flasher	Orange
C	104A	Left-hand Turn or Warning Light	Yellow
D	105A	Right-hand Turn or Warning Light	Green
E	106	Right-hand Flasher	Violet

X20 Right-Hand Gate Latch Switch Connector
Terminal	Circuit	Function	Wire Color
—	220E	Ground	Black
—	223A	Power	Orange

X21 Bale Diameter Connector
Terminal	Circuit	Function	Wire Color
A	330B	Ground	Black
B	336A	Bale Diameter Sensor	Blue
C	332B	Sensor	Red

X22 Twine Actuator Connector
Terminal	Circuit	Function	Wire Color
A	314A	Twine Actuator	Yellow
B	315B	Twine Actuator	Green

X23 PTO Speed Sensor
Terminal	Circuit	Function	Wire Color
A	411A	PTO Slip Clutch Alert Sensor	Brown
B	410B	Ground	Black

X24 Pickup Speed Sensor
Terminal	Circuit	Function	Wire Color
A	413A	Pickup Slip Clutch Alert Sensor	Orange
B	410C	Ground	Black
