Adjust Pickup Drive Chains
(MegaTooth™ Pickup)

To ensure that all slack is removed from chains;

• Close gate and engage PTO a few seconds.
• Stop tractor engine and remove key.

1.

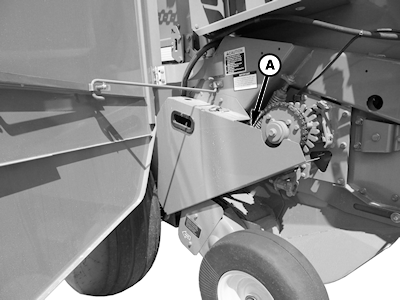

   E63301-UN-18APR12

   A - Shield

   Open right-hand side door.

---




2. Remove shield (A).

3.

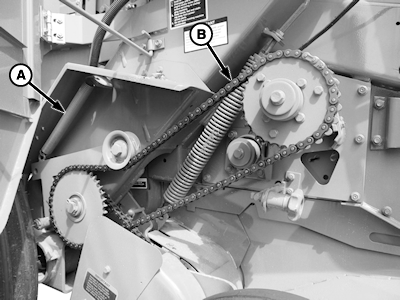

   E63302-UN-18APR12

   A - Idler Spring

   B - Drive Chain

   Measure distance between hooks on spring (A). Distance must be within specifications.

   Item	Measurement	Specification
   Idler Spring Hook-to-Hook	Distance	270 mm (10-5/8 in.)

---




4. If distance is less than specified, remove one link from drive chain (B). Repeat as needed.

5. Install shield and close side door.
