Replace Drive Roll Bearings or Left-Hand Sprockets

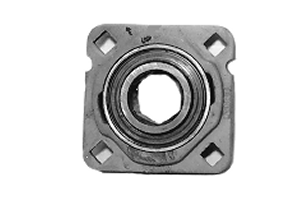

E54511-UN-15MAY06

Left-Hand Side Shown

E54507-UN-04MAY06

Right-Hand Side Shown

IMPORTANT: 1.5 and 3.0 mm thick washers at lower left-hand drive roll position only, must be machined and hardened to keep shaft end center bolt tight.

NOTE: When replacing drive sprocket, the procedure for installing center bolt and washers in left-hand drive roll must be followed to avoid loosening of center bolt.

NOTE: Make note of all washers and spacers when removing drive roll bearing. Replace with new washers to ensure proper joint. The exact number of washers and spacers must be installed in the same order and in same location as removed when drive roll bearing is installed.
