Remove Compressor Rack
(Regular and MegaTooth™)

1.

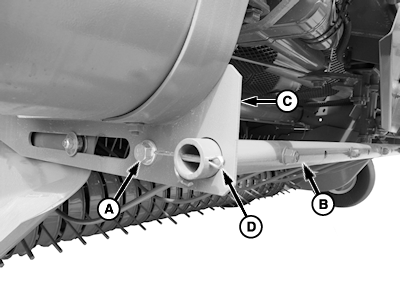

   E63297-UN-18APR12

   MegaTooth™ Pickup Shown

   A - Cap Screw

   B - Compressor Rack

   C - Right-Hand Bracket

   D - Cotter Pin

   Remove cap screw and cap screw (A). Remove cotter pin (D) from right-hand end of compressor rack tube.

---




2. Slide compressor rack (B) away from right-hand bracket (C).

3. Lower right-hand end and remove compressor rack from left-hand bracket.
