Install Compressor Rack
(Regular and MegaTooth™)

1.

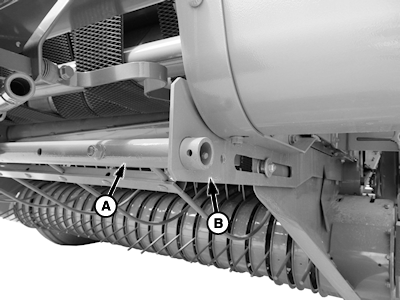

   E63298-UN-18APR12

   Left-Hand Side Shown

   A - Compressor Rack

   B - Left-hand Bracket

   Install compressor rack (A) in left-hand bracket (B).

---




2.

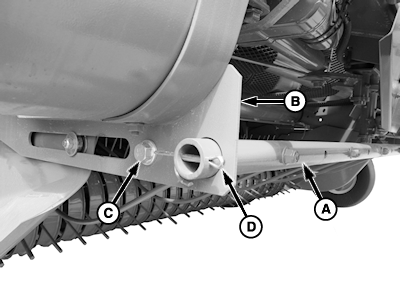

   E63299-UN-18APR12

   MegaTooth™ Pickup Shown

   A - Compressor Rack

   B - Bracket

   C - Cap Screw

   D - Cotter Pin

   Lift right-hand end and slide compressor rack (A) into bracket (B).

---




3. Install cap screw and cap screw (C). Install cotter pin (D) into right-hand end of compressor rack tube.

   NOTE: Make sure that compressor rods do not interfere with twine arm. Adjust individual rods, as necessary, or adjust compressor rack for clearance.

4. Adjust to desired operating height. Tighten cap screw (C). (See ADJUST COMPRESSOR RACK in this section.)
