Adjust Compressor Rack
(Regular and MegaTooth™)

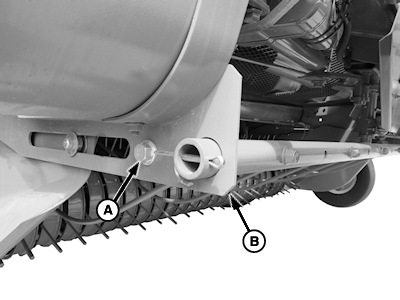

E63300
E63300-UN-18APR12

A - Cap Screw

B - Mounting Bracket

To improve feeding, the compressor rack can be adjusted up or down.

  1. Loosen cap screw (A).

  2. NOTE: Make sure that compressor rods do not interfere with twine arm. Adjust individual rods, as necessary, for clearance.

    Adjust rack to desired height.

    For an initial height setting, adjust compressor rack strap parallel to edge of mounting bracket (B).

  3. Tighten cap screw (A).

IMPORTANT: Belt damage can occur if crop is allowed to build up on top of compressor rack.

In short, dry, slick crops it can be necessary to remove compressor rods or compressor rack, if material builds up on top of rods. (See REMOVE COMPRESSOR RACK in this section.)

NOTE: Reinstall compressor rack or compressor rods when buildup conditions cease or when returning to bale hay crops.
