Adjust Compressor Rods (MegaWide™ Plus)

E66833
E66833-UN-19JUL12

E54549
E54549-UN-28JUN06

A - Round-Head Bolt and Nut (2 each side)

B - Compressor Tube

C - Dimension, 25—30 mm (1—1 3/16 in.)

D - Compressor Rods

E - Stripper

Adjust compressor rods whenever rods are replaced, roller baffle height is adjusted, or if compressor rack has been removed.

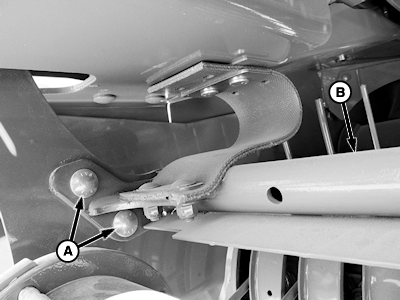

  1. If rods are replaced, loosen round-head bolts and nuts (A) on both sides of compressor rack.

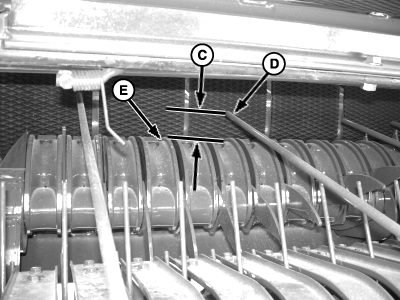

  2. Adjust compressor tube (B) until dimension (C) is 25—30 mm (1—1 3/16 in.) between compressor rods (D) and rotor stripper (E). Tighten round-head bolts (A) and nuts.

  3. Cycle twine arm and check for interference.
