Adjust Auger Scrapers (MegaWide™ Plus Pickup)

1.

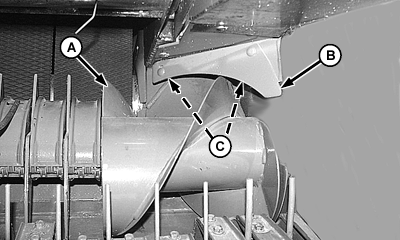

   E48190-UN-03AUG00

   Left-Hand Side Shown

   A - Auger

   B - Scraper

   C - Nuts

   Loosen nuts (C).

---




2. Position scraper (B) to auger (A) according to specifications at closest point. Rotate auger to check clearance.

   Item	Measurement	Specification
   Scraper-to-Auger	Clearance (Minimum)	1 mm (1/32 in.)

3. Tighten nuts.

4. Repeat procedure on opposite side.
