Adjust Twine Guide Arm Spring

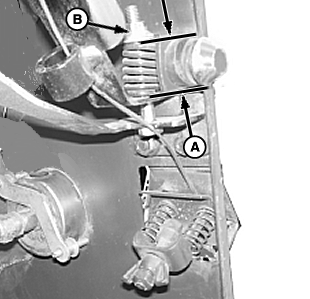

  1. E54759
    E54759-UN-24JUL06

    A - Distance, 28—32 mm

    B - Flange Nut

    Twine guide arm spring must be set to 28—32 mm (1.10—1.25 in.) (A), to provide tension on twine arm.


  2. Increase or decrease spring length by loosening or tightening flange nut (B).
