Adjust Clearance Between Cutter Link Support and Twine Arm

IMPORTANT: Do not operate twine arms with pickup in raised position, or damage to pickup teeth can occur.

1.
   E62491-UN-10APR12

   569 Shown with MegaTooth™ Pickup

   A - Quick-Lock Pin

   B - Left-Hand Curtain

   If equipped with MegaTooth™ pickup, remove quick-lock pin and rotate left-hand curtain away from front frame.

---




2. Turn tractor key to ON position. Press ON or OFF key to turn monitor-controller ON.

3. Press and briefly hold TWINE or NET key to select TWINE mode.

4.
   E40634-UN-06SEP00

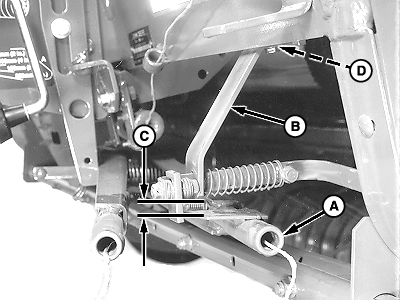

   A - Twine Arm

   B - Cutter Link Support

   C - Clearance

   D - Shims

   Press EXTEND or RETRACT key to move twine arm (A) under cutter link support (B).

---




5. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

6. CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

   Stay out of the path of twine arms at all times when power to twine area is ON.

   Measure clearance (C) between bottom edge of cutter link support (B) and top of twine arm strap. Clearance (C) must be within specifications.

   Item	Measurement	Specification
   Bottom Edge of Cutter Link Support-to-Top of Twine Arm Strap	Clearance	6—12 mm (1/4—1/2 in.)

   • If clearance (C) is less than specifications, remove shims (D) between cutter link support (B) and underneath crossbeam. If shims do not exist, lower twine arms relative to cutter link support. (See ADJUST TWINE ARM-TO-STARTER ROLL, CUTTER LINK SUPPORT AND TWINE ARM STOP in this section.)
   • If clearance (C) is more than specifications, add shims (D).



7. Change shims by loosening two self-tapping screws.

8. Remove end play at front of cutter link support toward center of baler. Tighten screws.

9. If equipped with MegaTooth™ pickup, rotate curtain toward front frame and fasten with quick-lock pin.
