Adjust Front Twine Arm

1.

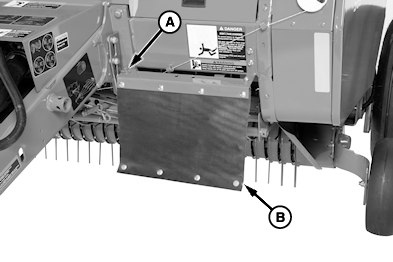

   E62491-UN-10APR12

   569 Shown with MegaTooth™ Pickup

   A - Quick-Lock Pin

   B - Left-Hand Curtain

   If equipped with MegaTooth™ pickup; Remove quick-lock pin (A) and rotate left-hand curtain (B) away from front frame.

---




2. Turn tractor key to ON position. Do not start tractor engine. Press ON or OFF key to turn monitor-controller ON.

3. Press and briefly hold TWINE or NET key to select TWINE mode.

4. Move twine arms to home position using monitor-controller RETRACT key.

5. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

6. CAUTION: Twine arms can move unexpectedly when twine arm power is on. Turn off power to twine arms when standing or placing hands near twine arms.


   E40629-UN-02JUL96


   E40628-UN-01JUL96

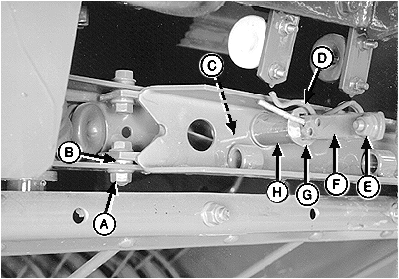

   A - Cap Screw and Nut

   B - Bushing

   C - Spring

   D - Spring-Locking Pin

   E - Cap Screw and Nut

   F - Twine Spacing Strap

   G - Washer

   H - Spacer

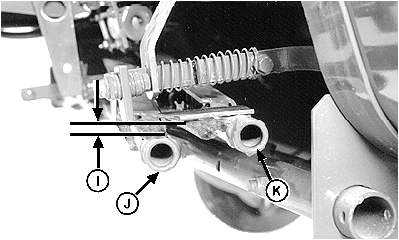

   I - Dimension

   J - Front Twine Arm

   K - Rear Twine Arm

   Remove cap screw and nut (E), spring-locking pin (D), washer (G), spacer (H), spring (C), and twine spacing strap (F).

---




7. Measure dimension (I) between tops of twine arms (J and K). Twine arm (K) must be higher than twine arm (J) according to specifications.

   Item	Measurement	Specification
   Top of Front Twine Arm-to-Top of Rear Twine Arm	Distance	4.5—7.5 mm (3/16—5/16 in.)

8. To adjust, loosen nut (A) enough so end of twine arm can be moved manually with some resistance.

   • If dimension (I) is less than specifications, move end of twine arm down until correct dimension is obtained.
   • If dimension is greater than specifications, move end of twine arm up until correct dimension is obtained.



9. Tighten nut (A) to specifications.

   Item	Measurement	Specification
   Twine Arm Pivot Nut	Torque	80 N·m (60 lb.-ft.)

10. Check dimension (I). Adjust as necessary.

11. Install twine spacing strap, spring, spacer, washer, cap screw, and nut. Install spring-locking pin (D) in desired hole. Adjust twine spacing. (See SET TWINE SPACING in Operating the Baler section.)

12. If equipped with MegaTooth™ pickup; Rotate left-hand curtain toward front frame and secure with quick-lock pin.
