Twine Arm Timing (569 and 569S)
CAUTION: Twine arms can move unexpectedly. Keep hands out of
twine arm path to avoid crushing. Turn off power BEFORE servicing
or adjusting twine arms or twine cutter mechanism.
Stay out of the path of twine arms at all times when power to twine arms is ON.
E39695-UN-31JAN96

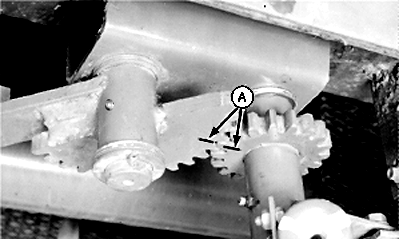

A - Timing Marks
When replacing or servicing twine arm or drive gear, make sure timing marks (A) are lined up as shown.If equipped with MegaTooth™ pickup; Rotate curtains out of the way to view timing marks.
|
