Adjust Gate Latch Linkage

1.

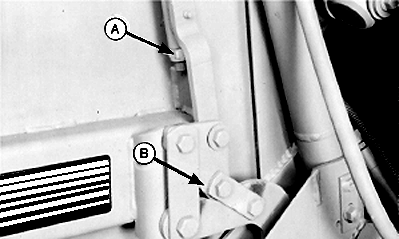

   E39717-UN-06FEB96

   A - Nut

   B - Plate

   Close gate. Make sure that gate cylinders are fully retracted.

---




2. Adjust nut (A) until plate (B) just touches relief notch in hook.

3. Repeat on opposite side.
