Replace Gate Latch Proximity Switches

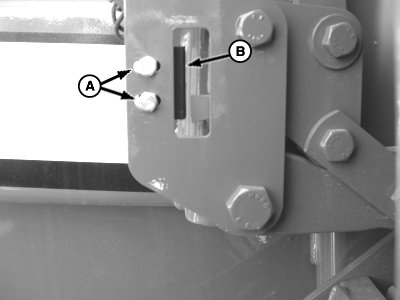

  1. E54647
    E54647-UN-12JUN06

    A - Mounting Hardware

    B - Proximity Switch

    Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.


  2. Remove mounting hardware (A) and switch (B).

  3. Disconnect wire harness from switch.

  4. Remove switch from mounting bracket.

  5. Install new switch in reverse order of removal using the following procedure:

    • Adjust switch position for proper operation. (See ADJUST GATE LATCH PROXIMITY SWITCHES) in this section.)
    • Confirm switch operation by taking test readings using control monitor. (See TEST GATE LATCH AND OVERSIZE BALE SWITCHES [CHANNELS 13, 14 AND 15] in this section.)

PP98408,00010DA-19-20130211
