Replace Oversize Bale Switch

  1. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

  2. NOTE: Label wires before disconnecting from switch to ensure proper connection to new switch terminals.

    Label wires.

  3. E38428
    E38428-UN-14FEB96

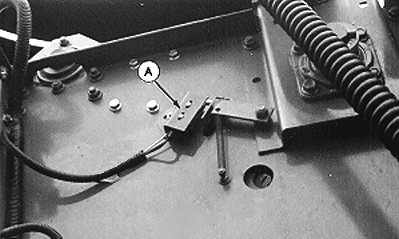

    A - Oversize Bale Switch

    Remove mounting hardware and bracket with switch (A).


  4. Remove switch from mounting bracket.

  5. Disconnect wires from switch.

  6. Install new switch in reverse order of removal using the following procedure:

    • Adjust switch or bracket position for proper operation. (See ADJUST OVERSIZE BALE SWITCH in this section.)
    • Confirm switch operation by taking test readings using monitor-controller. (See TEST GATE LATCH AND OVERSIZE BALE SWITCHES [CHANNELS 13, 14 AND 15] in this section.)
