Adjust Gate Latch Proximity Switches

1.

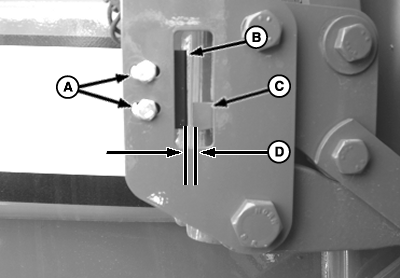

   E54646-UN-12JUN06

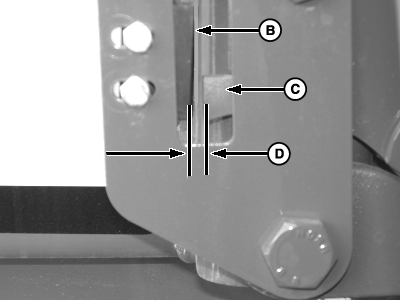

   E54648-UN-12JUN06

   A - Bolts

   B - Proximity Switch

   C - Latch Bar

   D - Dimension, 3.0 mm (1/8 in.)

   Close and latch gate. (Gate cylinders must be fully retracted.)

---




2. Loosen bolts (A) and move switch so it is parallel with mounting window edge and correct distance (D) from latch bar (C).

3. Ensure proximity switch (B) is even distance from top and bottom of latch bar (C). Set distance to specification.

   Item	Measurement	Specification
   Proximity Switch	Distance	3.0 mm (1/8 in.)

4. Repeat on opposite side.

5. Confirm switch operation by taking test readings using monitor-controller. (See TEST GATE LATCH AND OVERSIZE BALE SWITCHES—MONITOR ASSISTED [CHANNELS 013, 014 AND 015] in this section.)
