Raise Gate With Hoist

1.

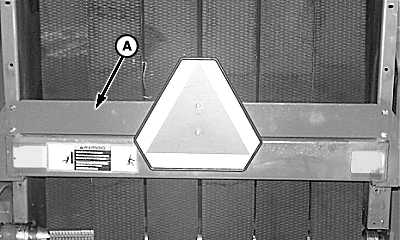

   E48287-UN-19JUL00

   A - Shield

   Remove four round head bolts and top belt shield (A) with SMV sign.

---




2. Wrap chain hoist around cross frame member and raise gate.

3. When finished, replace shield and SMV sign.
